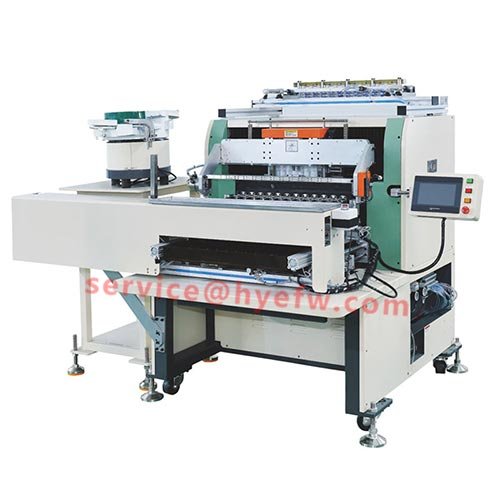

HY-R1005 vibrating plate feeding automatic winding machine
Configuration requirements:
Spindle number |
16 / 12 / 8 |
|
Spindle speed (rpm) |
12000 |
|
Spindle pitch (mm) |
35/45 |
|
Spindle servo motor power (W) |
1500/3000 |
|
Traverse motor power (W) |
X:200, Y:200, Z:400 |
|
Spindle diameter (mm) |
standard?10 particular?12 |
|
Wire range (mm) |
0.02-0.4mm ?Additional air pressure scissors and replacement motor Can be wound more than 0.4mm? |
|
Max.wire diameter (mm) |
26/35 |
|
Traverse moving range (mm) |
X:110, Y:150, Z:70 |
|
Traverse speed (mm/sec) |
250 |
|
Power voltage (V) |
Single item 220V, 50/60HZ |
|
Power voltage (W) |
3500W/4500W |
|
Air pressure (Mpa) |
0.45-0.55 |
|
Machine size (mm) |
1500(L)x1400(W)x1600(H) |
|
Machine weight (kg) |
850 |
|
Performance characteristics:
1. Programming using computer or touch screen, free to choose, Chinese display is easy to understand
2. Unique quick joint fixture design to reduce change time
3. Guide pin 0 ° / 90 ° / 135 ° Optional installation, convenient for different multi-angle skeleton winding
4. Use the precision belt back tension control tensioner to make the product line more neat
5. With automatic loading and unloading function, it can greatly save the winding time
6. It has the function of automatically clamping, disconnecting and eliminating waste wires.
7. Increase the servo finger and wire feeding device to achieve precise winding of small products
