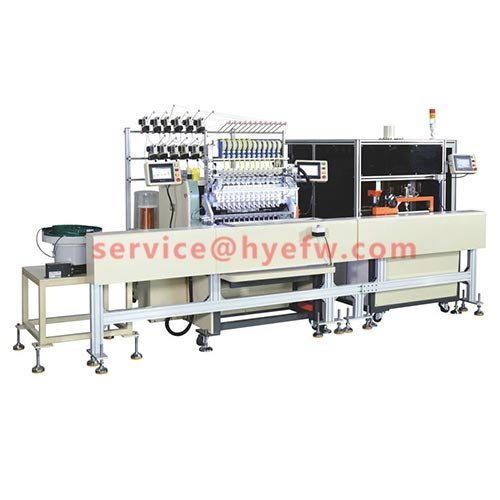

HY-R1006 transformer automatic production line
Automated production process?
?Vibrating plate automatic feeding? + ?Twelve-axis winding machine? + ?Soldering machine? + ?Wobble plate?
Configuration requirements:
pindle number |
12 |
Spindle speed (rpm) |
12000 |
Spindle pitch (mm) |
45 |
Spindle servo motor power (W) |
1500/3000 (Optional) |
Traverse motor power (W) |
X:200, Y:200, Z:200 |
Spindle diameter (mm) |
standard?10 particular?12 |
Wire range (mm) |
0.02-0.4mm?Additional air pressure scissors and replacement motor Can be wound more than 0.4mm? |
Max.wire diameter (mm) |
35 |
Traverse moving range (mm) |
X:110, Y:150, Z:70 |
Traverse speed (mm/sec) |
200 |
Power voltage (V) |
Single item 220V, 50/60HZ |
Power voltage (W) |
3500W/4500W |
Air pressure (Mpa) |
0.45-0.55 |
Machine size (mm) |
2000(L)x1300(W)x1500(H) |
Machine weight (kg) |
840KG |
Performance characteristics:
1. This machine can realize double wire winding or double wire alternately winding
2. Can be automatic soldering, automatic wobble plate
3. Programming using computer or touch screen, free to choose, Chinese display is easy to understand
4. Unique quick joint fixture design to reduce changeover time
5. Guide pin 0 ° / 90 ° / 135 ° Optional installation, convenient for different multi-angle skeleton winding
6. With automatic loading and unloading function, it can greatly save the winding time
7. It has the function of automatically clamping, disconnecting and eliminating waste wires.
8. Increase the servo finger and wire feeding device to achieve precise winding of small products.
