Description

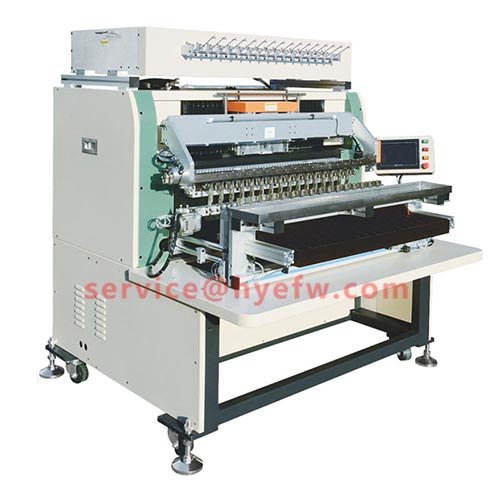

Parameters of HY-R15 sixteen axis automatic winding machine
Supply voltage: three phase 220V AC + 10% 50HZ/60HZ
Power consumption: 3KVA
Control method: four axis servo synchronization control
Spindle number: 16 axes
Spindle speed: 9000/12000/18000 standard / reverse
Spindle spacing (mm): 33mm
Traverse pin moving range (mm): X LEFT/RIGHT axis (100mm)
100mm:X axis (FORWARD/BACKWARD)
55mm:Z axis (UP/DOWN)
Spindle positioning angle: 360 - 0 degrees /rev
Displacement accuracy: 0.01mm
Spindle positioning accuracy: + 1
Use wire diameter: 0.02-0.04mm
Foot binding speed: MAX:150RPM
Feeding speed: 20-200mm/sec
Guide pin moves the highest speed: 12m/min
Max frame outside diameter (mm): 30mm
Maximum width: 90mm
Foot angle choice: 0 degrees 45 degrees 90 degrees 135 degrees
Storage and memory: USB+DOM64M (option 256M)
Using air pressure: 4-6kgf/cm2
Machine net weight (kg): 350kg
Mechanical packing weight (kg): 450kg
Machine size (mm): mm 1400L*780W*1680H
A. teaching interactive touch, human interface, easy to control, cultural program management, easy to learn and easy to understand, five minutes to get started, no need for keyboard and external power, direct input, adjust the time is short
B. diagnosis function, rapid repair
C. four axis NC repair, a spiral wrapped around the foot
D.CNC server driven, precision positioning
E. quick change type shaft fixture
F. four kinds of angle wrapped PIN feet function
G. high speed and high precision, improve the quality and quality of winding
H. can be a single operation, can also be paired with automated production
I. can automatically exchange the material collocation, scissors and pressure Jiao line equipment (special equipment)
Supply voltage: three phase 220V AC + 10% 50HZ/60HZ
Power consumption: 3KVA
Control method: four axis servo synchronization control
Spindle number: 16 axes
Spindle speed: 9000/12000/18000 standard / reverse
Spindle spacing (mm): 33mm
Traverse pin moving range (mm): X LEFT/RIGHT axis (100mm)
100mm:X axis (FORWARD/BACKWARD)
55mm:Z axis (UP/DOWN)
Spindle positioning angle: 360 - 0 degrees /rev
Displacement accuracy: 0.01mm
Spindle positioning accuracy: + 1
Use wire diameter: 0.02-0.04mm
Foot binding speed: MAX:150RPM
Feeding speed: 20-200mm/sec
Guide pin moves the highest speed: 12m/min
Max frame outside diameter (mm): 30mm
Maximum width: 90mm
Foot angle choice: 0 degrees 45 degrees 90 degrees 135 degrees
Storage and memory: USB+DOM64M (option 256M)
Using air pressure: 4-6kgf/cm2
Machine net weight (kg): 350kg
Mechanical packing weight (kg): 450kg
Machine size (mm): mm 1400L*780W*1680H
Mechanical packing size (mm): mm 1600L*1050W*1750H
model：HY-R15
Features of HY-R15 sixteen axis automatic winding machine:A. teaching interactive touch, human interface, easy to control, cultural program management, easy to learn and easy to understand, five minutes to get started, no need for keyboard and external power, direct input, adjust the time is short
B. diagnosis function, rapid repair
C. four axis NC repair, a spiral wrapped around the foot
D.CNC server driven, precision positioning
E. quick change type shaft fixture
F. four kinds of angle wrapped PIN feet function
G. high speed and high precision, improve the quality and quality of winding
H. can be a single operation, can also be paired with automated production
I. can automatically exchange the material collocation, scissors and pressure Jiao line equipment (special equipment)
