Description

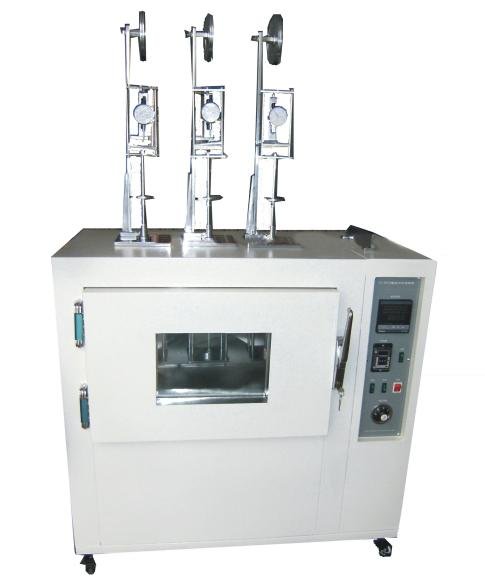

KP8005 heat distortion test machine wire and cable
This machine is used to test plastic and wire sheathing materials such as thermal deformation, at a particular temperature, the specimen is placed in the testing machine free for 30 minutes, then sandwiched between parallel plates of the machine, plus the provisions of the load, with the temperature placed further 30 minutes, whichever is the thickness difference before and after heating with the amount of scale, this thickness difference is divided by the thickness before heating, as a percentage, is the deformation rate. Fully compliant with JIS-C-3005 test standards
According to the standard
GB 2099.1-2008 plug socket for household and similar purposes - Part 1: General requirements
UL 1581-2009 wire cables and cords
JIS C 3005-2000 Test methods for rubber or plastic insulated wires and cables
1, the test device: Group 3
2, temperature: room temperature ~ 300 ?
3, weight: 50,100,200,500,1000g all three
4. Scale: Japan MITOTOYO0.01 / 10mm
5, Volume:
Within the box size: Length 600mm * 400mm * high 360mm deep
Carton dimensions: length 1100mm * 1730mm wide and 620mm high
6. Within the box material: SUS # 304 stainless steel.
7, Carton Material: 1.5mm steel plate, electrostatic paint
8, insulation material: high-density asbestos
9, Weight: 113kg
