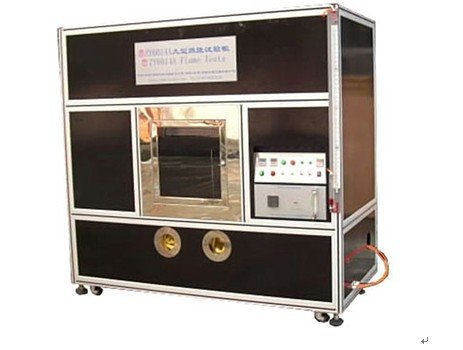

KP8001 VW-1 large combustion cabinet
This large combustion cabinet is in strict accordance with UL1581 sect 1080.1 ~ 1080.14 standard production, fully in line with VW-1 (V-ertical-specimen) Flame Test Burning test standards. The entire test in a volume of 4.32 m3 test chamber was sealed.
Test method: regulate the height of the flame, the flame will be placed under the top of the specimen, burning for 15 seconds, off 15 seconds, repeated 5 times to check the specimen burned situation, you can set the burning, off time and the number of repetitions, and automatic operating. UL1581.UL13.UL444.UL1655 applies the VW-1 and the CSA FT-1, FT-2.
A combustion chamber
1.1. Available space: 2.4m (length) * 1m (width) * 1.8m (H)
1.2. Dimensions: 2.4m (length) * 1m (width) * 2.5m (H)
1.3. Materials:
a External: square steel frame structure, 1.5mm thick steel plate electrostatic roasted dark green paint;
b Internal: grilled black electrostatic paint.
1.4. Observation window:
a push-pull window about two
. B observation windows of tempered glass;
. C surrounded by SUS304 stainless steel edging;
d, Size: 730mm (height) * 420mm (width).
1.5. Operation Window: 4
. A space inside dimensions: ?150mm;
b periphery: the 3.0mm stainless steel edging;
C. to seal the long arm of leather gloves, length: 600mm;
. D Total external dimensions: ?220mm.
1.6. Exhaust system:
A spiral two exhaust fan;
B seal sliding board is 2.0mm stainless steel;
C on both sides of a sliding groove;
D means a set of remote operation:
D1. With steel rope type two
D2. Pulley groups
1.7. Inlet: 4
a Size: ?160mm;
b seal sliding board is 2.0mm stainless steel plate;
c on both sides of a sliding groove.
1.8. The bottom of the holder:
a Size: 2.4m (length) * 1m (width) * 0.7m (height);
b using 60mm * 60mm * 4mm angle iron, electrostatic roasted dark green paint;
c foot pulley: six of which lockable pulley 4.
1.9. Lighting: The anti-fog lights a smoke round
Second, the control section
2.1. Burning an indication
2.2. Burning Settings: 0-99.99 seconds arbitrarily set
2.3. Indicating a fuel stop
2.4. Stop burning settings: 0-99.99 seconds arbitrarily set
2.5. Burning count: 0-999999 times arbitrarily set
2.6. With automatic combustion, fuel stop, counting function
2.7. A vertical / horizontal conversion function
2.8. With automatic ignition function
2.9. With manual / automatic conversion
2.10. Ignition high voltage ignition mode
2.11. Test portion connected to the control, the use of air plugs, very close contact with
Third, the test portion
3.1. Nozzle: 1. The angle is 20 degrees
3.2. An inner flame valve
3.3. Waiyan valve 1
3.4. Flame point of contact within a marked ruler
3.5. Low flag marked a foot
3.6. Test-foot length of 1
3.7. The amount of the flame detector 1
3.8. Test holder: a material: steel plate after finishing paint b color: pure black
3.9. Test case for SUS304 stainless steel with fine processing
3.10. Test frame at the bottom:
a.2.0mm two plates
b Size:. 700mm (length) × 450mm (width)
c color: black baked electrostatic paint
3.11. Vertical and horizontal test independent design
3.12. Test box plus the long arm of the pusher
3.13. Horizontal burning flag 3
Fourth, the gas source control:
4.1. Gas: self, it is recommended to use methane
4.2. Flowmeter: 1 (US Dwyer VA20430 type)
4.3. U-tube manometer: 1 (US Dwyer company type 1230-36)
4.4. A gas tee
4.5. Trachea: a high-pressure pipe
