Description

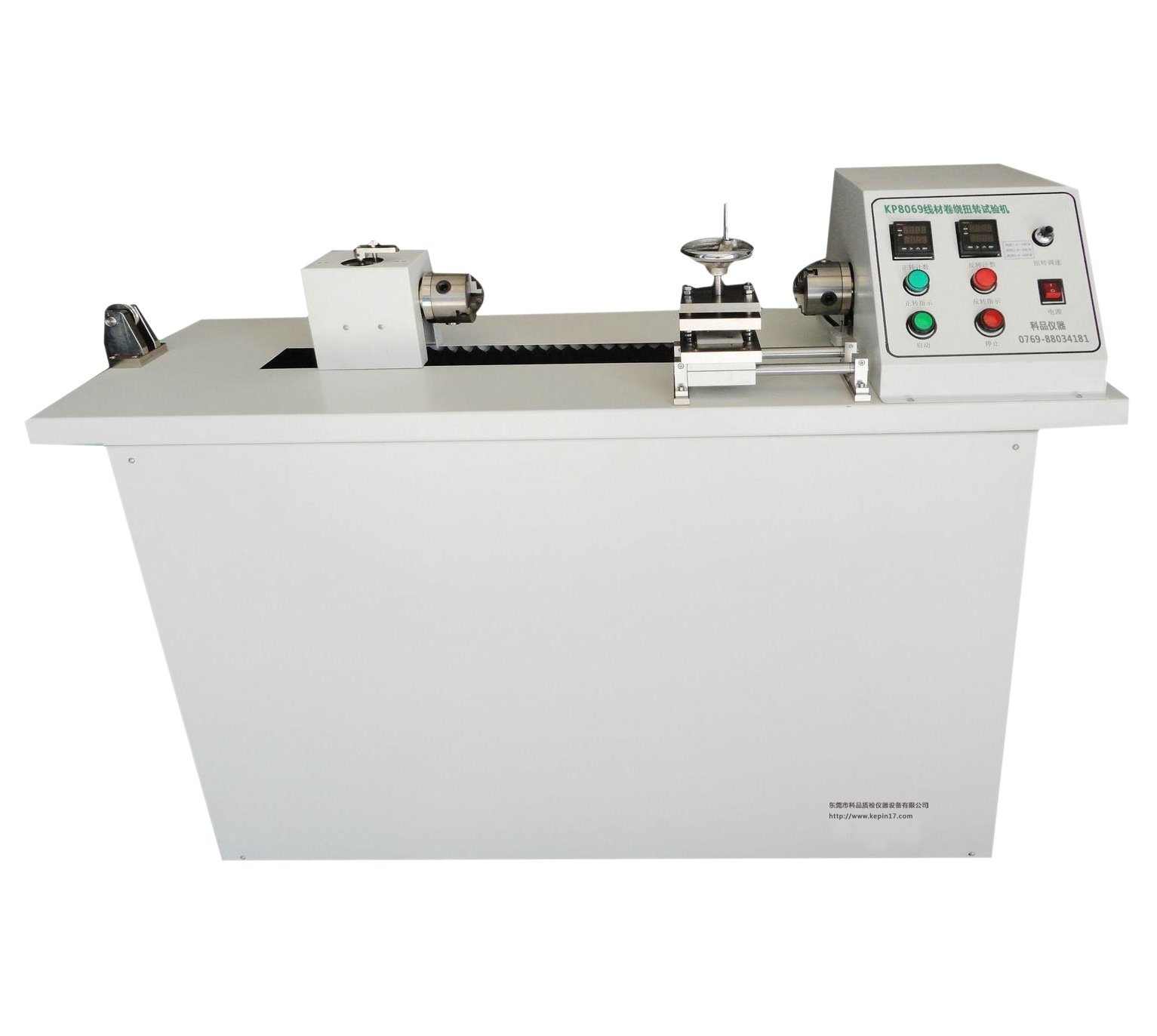

KP8069 wire winding torsion testing machine
Compliance: GB4909.4-85, GB4909.7-85
Applies GB4909.4-85 "bare wires Test Methods and torsion test" and GB4909.7-85 "bare wire winding test Test Methods" standard for aluminum, steel wire, copper rod needs winding, twisting test case. ACSR manufacturers is necessary testing tools.
Second, the main technical parameters:
1, Dimensions: 1365mm × 505mm × 1185mm (net size)
2, the input voltage: 380V
3, the input power: 0.75 kw
4, reversing adjustable range: 10r / min, 30 r / min, 60 r / min
5, winding range:
(1) aluminum: ?6mm the following with the mandrel ?1.5-?23mm, ?3mm aluminum recommends the following hand wound.
(2) Wire: ?6mm less, winding wire itself, not to be mandrel
6, reversing range:
(1) Copper: 12mm or less
(2) Aluminum: 20mm or less
(3) Wire: ?6mm less
