Description

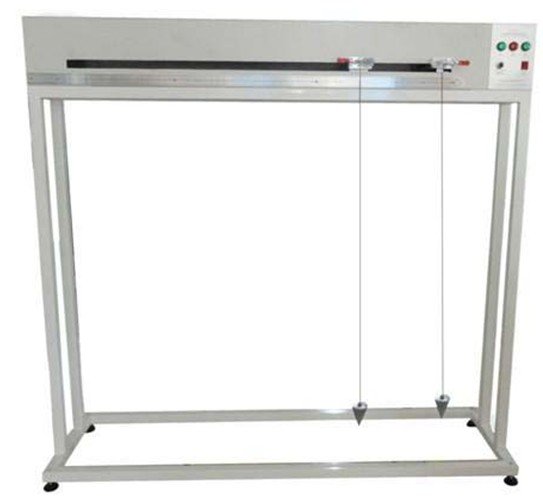

KP8105 wire and cable Static Flexing Tester
1. Scope:
Adapted to detect plastic rubber insulation and sheathing of flexible cables under static load song torsion test.
2. Standards compliant:
In line with GB / T5023, GB / T5013 and other standards
3. The main parameters:
3.1 Test station: 1 of bits, each measurement sample.
3.2 way around: A chuck should be fixed, the cartridge B in the cartridge A horizontal line of horizontally move around.
3.3 scratch length: 200-1500 (mm) can be adjusted, the outer diameter of the sample ?6-32mm;
3.4 Motor power: 370W
3.5 Sample Length: 3000 ± 5% (mm)
3.6 fixture from the ground height: 1500mm
3.7 Detection downtime: When the test specimen conductors open and short circuits.
3.8 Auto stop function: with precision counter, when the set number is reached, the machine automatically stops working.
3.9 Power Requirements: AC220 (± 10%) V / 50HZ.
4. The assembly, material and function:
4.1 sheet metal material: high-quality sheet metal (t = 1.2mm) electrostatic plates using CNC machining, nice arc shape, shell surface spray, more clean and beautiful.
4.2 Rack Material: high-quality aluminum.
5. Mechanical Drive System:
DC gear motor with brake + sprocket chain structure.
6. Control System:
6.1 using relay control system, all electronic components are used in the leading domestic brands, to better ensure the performance and detection accuracy of the machine.
6.2 devices have the following safety devices: power overload, short circuit protection, overload control loop.
