HUIYUE (DongGuan City) Automation Equipment Co., Ltd.
Description

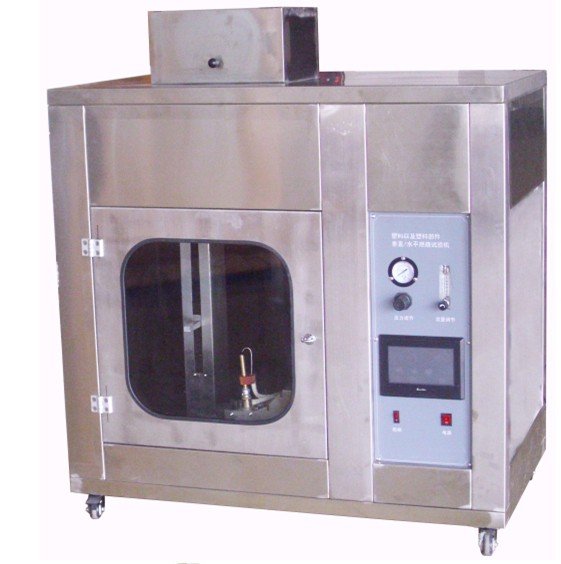

KP8010C horizontal + vertical burning test machine (UL94 specification tester)
Standard: UL94, GB / T2408-2008
The combustion characteristics of the combustion test instrument for testing and evaluation of plastic materials, the US UL94 standard "equipment and equipment parts with plastic material flammability test" set forth in the design and manufacture in accordance with the relevant provisions of the plastic parts of the equipment and utensils horizontally vertical flammability test, and equipped with a gas flow meter, adjust the flame size of the motor-driven mode, simple and safe operation.
According to the standard: UL94, GB / T2408-2008 Tag: UL94 vertical burning test machine, UL94 horizontal burning tester
This section uses PLC + color LCD touch screen control, easy to understand user interface and beautiful, and is equipped with test data printer, you can test conditions and test results will be printed out for easy record test results.
7 inches color LCD touch screen display, and the display can be set ignition timing, the time Shi Yan, Yu Yan time, burning more than time, the number of tests can be performed rising clamp down regulation and gas such as ignition control, interface and display print run status.
specification:
Case volume: ?0.5 m, with glass door (s)
Shi Yan time: 0 to 99 minutes 99 seconds can be set
I flame time: 0 to 99 minutes 99 seconds can be set
Burning time: 0 to 99 minutes 99 seconds can be set
Timer Timer: 0 to 99 minutes 99 seconds is adjustable, the combustion time can be set, the combustion duration can be recorded.
Combustion angle: 20 °, 45 °, 90 ° (i.e., 0 °) can be adjusted.
Burner size parameters: nozzle inner diameter Ø9.5 ± 0.3mm, the nozzle effective length of 100 ± 10mm, air adjusting hole.
Flame height: standard requirements can be adjusted from 20mm 175mm
Features Noted: Another arranged illumination device, suction device, gas control valve, the product features a gas gauge, gas pressure regulating valve, gas flow meter, gas pressure gauge and a U-shaped sample holder
Power Power: AC 220V, 50Hz
Standard: UL94, GB / T2408-2008
The combustion characteristics of the combustion test instrument for testing and evaluation of plastic materials, the US UL94 standard "equipment and equipment parts with plastic material flammability test" set forth in the design and manufacture in accordance with the relevant provisions of the plastic parts of the equipment and utensils horizontally vertical flammability test, and equipped with a gas flow meter, adjust the flame size of the motor-driven mode, simple and safe operation.
According to the standard: UL94, GB / T2408-2008 Tag: UL94 vertical burning test machine, UL94 horizontal burning tester
This section uses PLC + color LCD touch screen control, easy to understand user interface and beautiful, and is equipped with test data printer, you can test conditions and test results will be printed out for easy record test results.
7 inches color LCD touch screen display, and the display can be set ignition timing, the time Shi Yan, Yu Yan time, burning more than time, the number of tests can be performed rising clamp down regulation and gas such as ignition control, interface and display print run status.
specification:
Case volume: ?0.5 m, with glass door (s)
Shi Yan time: 0 to 99 minutes 99 seconds can be set
I flame time: 0 to 99 minutes 99 seconds can be set
Burning time: 0 to 99 minutes 99 seconds can be set
Timer Timer: 0 to 99 minutes 99 seconds is adjustable, the combustion time can be set, the combustion duration can be recorded.
Combustion angle: 20 °, 45 °, 90 ° (i.e., 0 °) can be adjusted.
Burner size parameters: nozzle inner diameter Ø9.5 ± 0.3mm, the nozzle effective length of 100 ± 10mm, air adjusting hole.
Flame height: standard requirements can be adjusted from 20mm 175mm
Features Noted: Another arranged illumination device, suction device, gas control valve, the product features a gas gauge, gas pressure regulating valve, gas flow meter, gas pressure gauge and a U-shaped sample holder
Power Power: AC 220V, 50Hz
