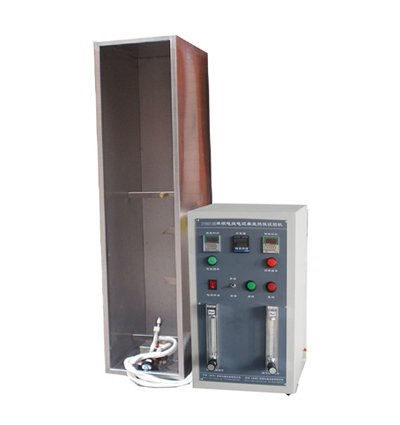

KP8026A single wire or cable vertical burning test machine (without hood)
Scope:
Applicable under specified fire conditions, a single wire or fiber optic cable vertical flame test cases slow extension
Standards compliant;
In line with GB / T12666.1-2008, GB / T18380.11-2008, GB / T18380.12-2008, GB / T18380.13-2008, IEC60332-1-1: 2004, IEC60332-1-2: 2004, IEC60332 -1-3: 2004
In line with GB / T18380.21-2008, GB / T18380.22-2008, IEC60332-2-1: 2004, IEC60332-2-2: 2004
First, the standard
The instrument according to GB / T 18380.1, IEC60332-1, JB / T 4278.5, BS, EN test standard production.
Second, the use
Both ends of the sample holder and placed vertically on three sides of the metal plate metal cover. Lit torch, the tip of the blue cone touches the surface of the test specimen and holding a torch and a vertical axis 45 °.
Third, the main parameters
1, the metal cover: high 1200mm, width 300mm, depth 450mm, former cabinet door configuration with a glass viewing window, top with exhaust, closed at the bottom.
2, the nominal power of 1kw blowtorch.
3, set the burn time reaches the preset time, the machine will automatically stop firing.
4, the high-voltage ignition automatic fire.
5, fuel: methane gas (customer supplied)
6, air flow meter: 10L / min, gas flow meter 650mL / min each a
7, a temperature measuring device
