Description

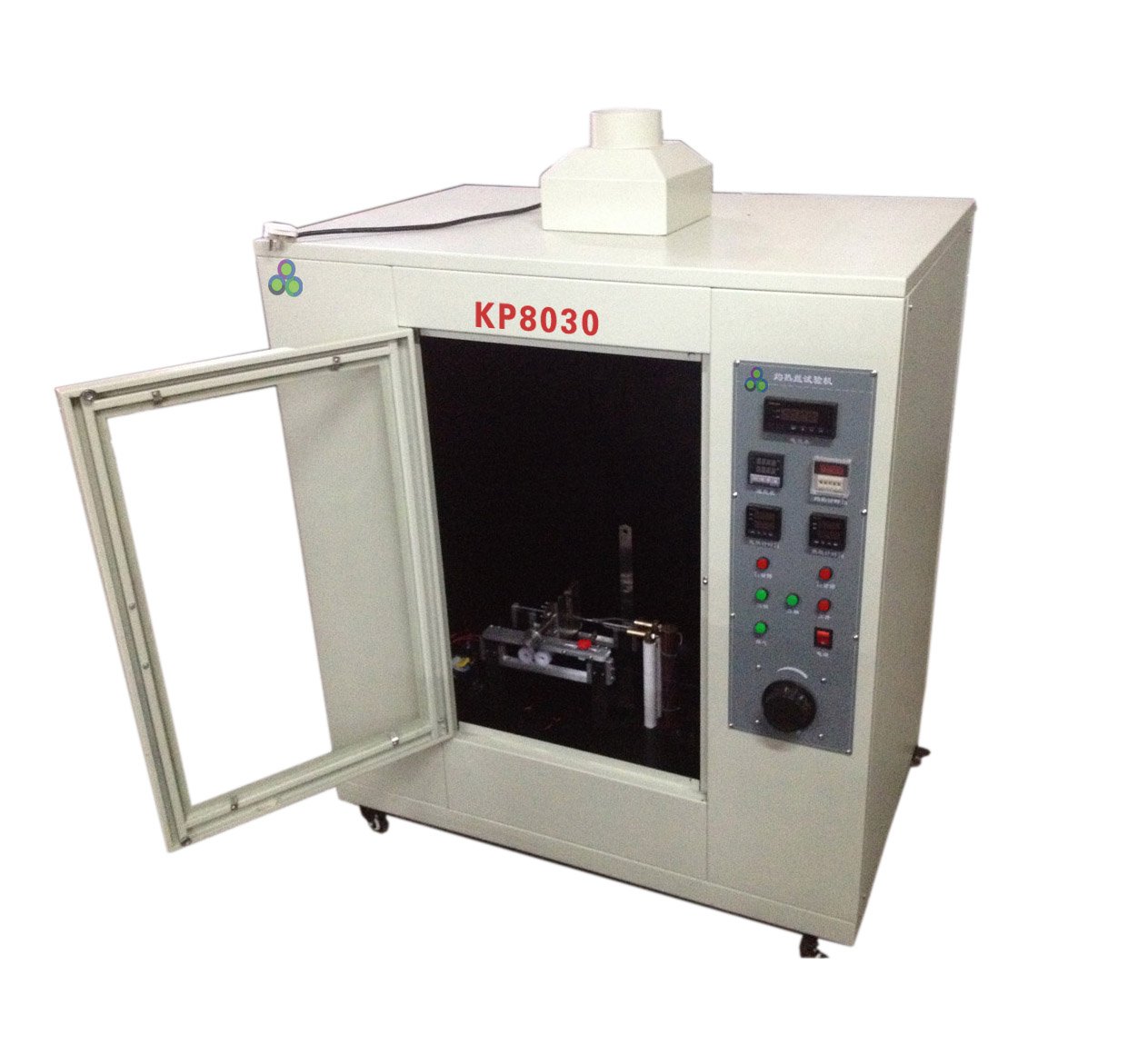

KP8030 hot wire tester
Overview:
Electrical components or parts in case of failure or overload conditions, may reach too high a temperature or light them near the parts. Glow-wire test is to simulate the glow element overload resistance like heat or ignition source in a short time to thermal stress caused by technology assessment of fire risk. Glow wire test machine for electrical and electronic products, household appliances, plastic and non-metallic components of the insulation materials used parts, such as: the switch housing, relays, sockets ......
Standard:GB4706.1, L1694, GB / T5169, IEC60695-2-2, GB2099
1, GB / T 5169.10-2006 Fire hazard testing for electric and electronic products - Part 10: Glowing / hot-wire based test methods - Glow - wire apparatus and common test methods;
2, GB / T 5169.11-2006 electric and electronic products Fire hazard testing - Part 11: Glowing / hot wire based test methods - Glow - wire flammability test method for the finished product;
Glowing / hot wire based test methods - Glow - wire flammability test method for materials;: 3, Part 12 GB / T 5169.12-2006 Fire hazard testing for electric and electronic products
4, GB / T 5169.13-2006 Fire hazard testing for electric and electronic products - Part 13: Glowing / hot wire based test methods - Glow - wire ignitability test method for starting materials.
The main parameters:
1. Test the gas source: the use of bottled butane gas, propane gas may be used
2. The needle burner: stainless steel
3. The needle burner tube: inner diameter of ¢ 0.5 ± 0.1, an outside diameter
4. Glow Wire: 4mm ± 0.04mm Ni80 / Cr20
5. Temperature error: 500 ~ 700 ? ± 2 ?; 750 ~ 1000 ? ± 5 ?
6. Thermocouple: 0.5 ~~ 0.55mm side temperature using a nickel-chromium armored (K type) thermocouple imports
7. The test of the glow-wire test pressure; glow-wire samples 0.8N ~ 1.2N of force
8. indentation depth: limit the indentation depth of at least 7mm
9. The sample moving speed: 10-25mm / s
10. 0-99.99 applying adjustable time range.
11. Volume: 1120 * 520 * 1250mm
