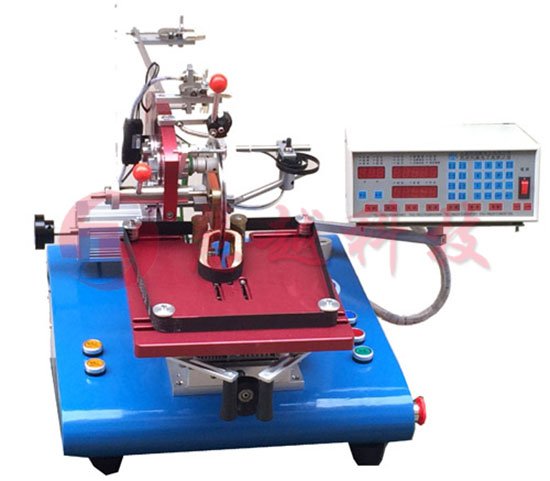

HY-R26 shaped coil winding machine for products - ring
Opening and closing type transformer, large current, voltage transformer, three-phase current transformers, various types of toroidal transformer and so on.
HY-R26 shaped coil ring winding machine - product features
A. This model uses the CNC digital control system, the operation is simple, the maintenance is little, the fault is low, the exterior is novel, the structure is reasonable, the use of high quality steel processing, machine weight, good stability.
B. use brushless drive, low noise, cable equipped with constant current chopper drive mode, follow quickly and precision and the fittings with brand products, excellent performance, long life cycle, adapt to the working environment.
C. pumped storage Dan 1000 step sequence can be set number of laps, outside diameter, inside diameter, height, angle, line size, direction, speed and other parameters, with accurate counting and memory blackouts, overload current protection and anti-jamming function.
HY-R26 shaped coil ring around the technical parameters of machine - product line
1 each output: 1PCS
2 control mode: CNC digital brushless controller
3 power: 400W

4 jig head diameter: Phi 10mm
