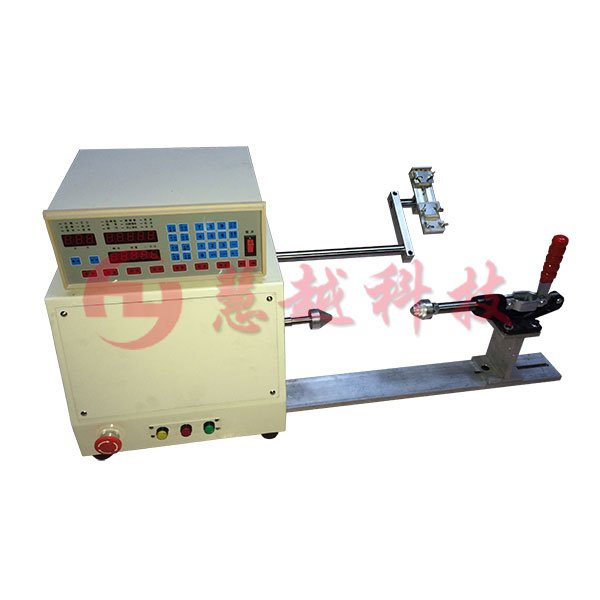

Device name
CNC automatic distributing machine
Model: HY-R21
Two, equipment size
About long 560x wide 350x high 410mm (not including the line rack)
About weight 30KG
Three, basic requirements
1, input: AC220V, frequency 50HZ
2, using the latest synchronization with lotus type cable, high accuracy, high intelligent mode.
3, large memory capacity, access to 1000 sets of steps.
4, spindle speed 3000-5000RPM (optional)
5, motor: DC 120W Brushless
6, the body has: automatic function
Four, function description
1, the controller adopts the latest synchronous with the lotus type cable, high accuracy, super high intelligent mode, with self detection function, including setting error, tracking speed and speed, with speeding detection function, can automatically lowered the spindle speed to the most stable state.
2, wire diameter setting: 0-1.0mm
3, cable distance: 0-100mm
4, volume diameter: 80mm
5, standard wire diameter: Phi 0.03-0.6mm
Five, body materials and electrical materials
1, the main part of the use of A3 materials
2, other aluminum anode oxidation.
3, the controller, spindle motor, motor winding by Shenzhen leadshine technology.
