Description

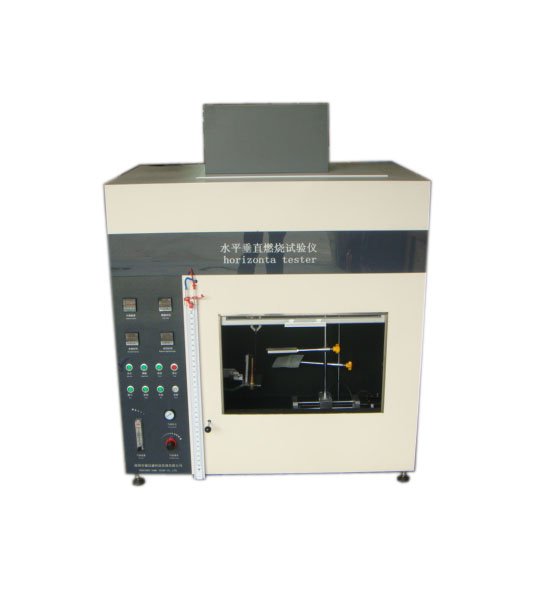

KP8012 foam vertical / horizontal burning test machine
Suitable for evaluation of foam (foam rubber) is relatively small combustion properties of the sample. Comply with GB8332, GB8333, ISO3582,
The UL94 HBF, HF-1, HF-2 test standards.
Test chamber dimensions: length 600mm, width 300mm, height 760mm Figure 1
Timer: 0 ~ 99.99S arbitrarily set.
Combustion gas: Gas
Horizontal burning test:
Burner: Bunsen burner. Light tops a wing top nozzle height 400mm
Taper angle 60 °, inside the nozzle length 48mm, width 3.0mm
Flame height: blue inner flame 38mm, measured from the top of the wing temperature 1000 ?
Sample care network: ?0.8mm steel wire mesh each side 6.4mm, net
Length 215mm, width 75mm, height 13mm
Vertical combustion test:
Burner: Bunsen burner. A cylinder inner diameter 9.5mm. 15 ° to the vertical line and
Flame height: blue inner flame 30mm, inner flame top temperature of 960 ?
Sample holder: stainless steel, height 305mm, width 64mm, depth 57mm.
There are three fixing nail samples
With the temperature measuring device
