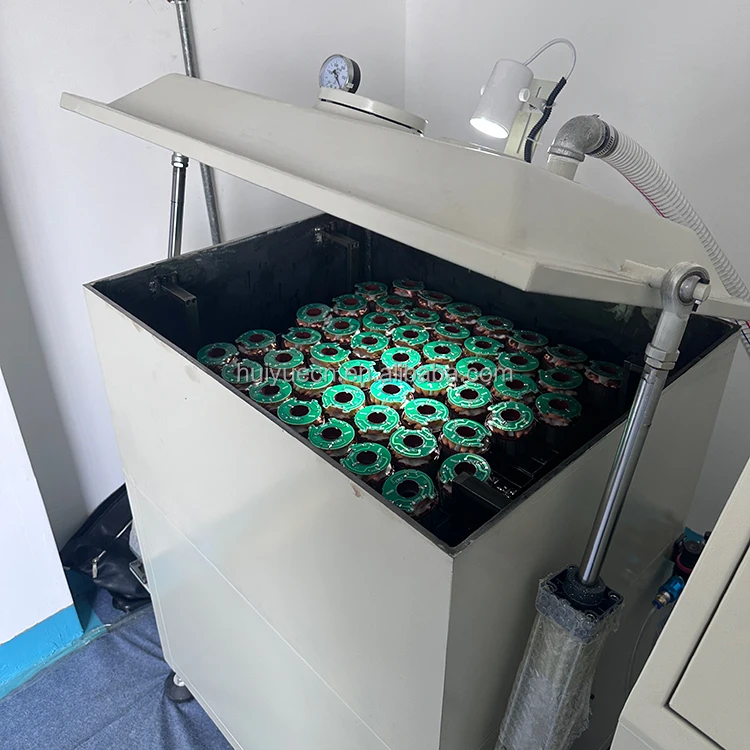

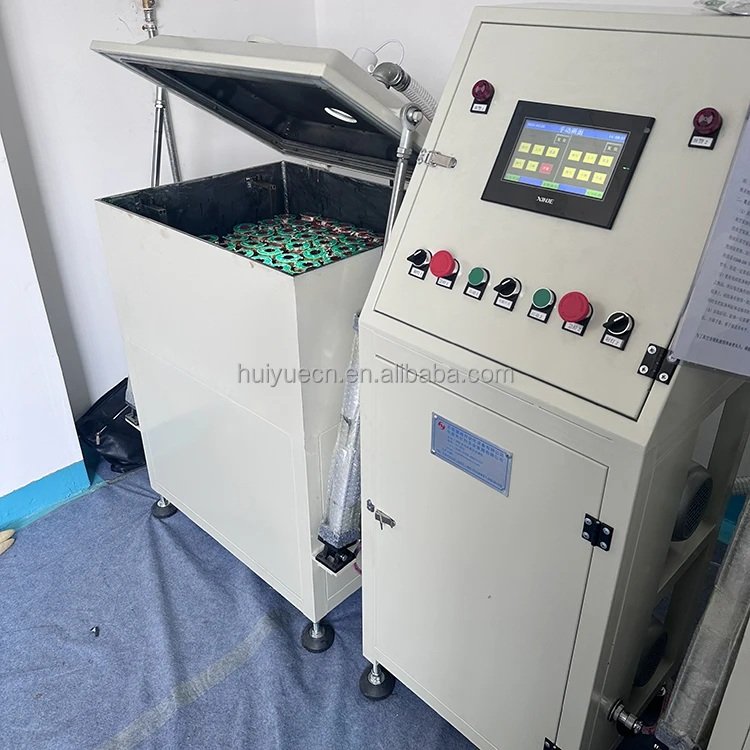

Power 2KW Fully Automatic Double Cylinder Vacuum Dipping Machine for New Energy Motor Coil

HY-Z03 double cylinder automatic vacuum impregnation machine equipped with requirements

1, input: AC 380V 3 phase 4 wire 50Hz (Power: 1HP)
2, using 50KG hydraulic support rod cap. Cover around the silicone rubber seal, quick clip cover.
3, the stepper motor drive precision ball screw drive tankheave and dip, preset height (Zi Cao maximum distance 60mm; displacement accuracy + 0.05mm)
4. The spiral lift large bearing capacity, high control accuracy, PIN will not get stuck without valitin water, two tin.
5, the PLC controller can be preset multiple impregnation mode, with timely, appropriate function to eliminate air bubbles;
6, automatic switch box cover, two automatic vacuum pumping, save time and effort, environmental protection, energy saving, can achieve single machine operation.
7, the overall use of 10MM steel plate production. Double glass observation window can be readily available to view the situation



Vacuum Impregnation Machine – Frequently Asked Questions (FAQ)

Q1. What materials can be impregnated?
Our vacuum impregnation machine is suitable for metal castings such as aluminum, iron, steel, magnesium alloy, zinc alloy, powder metallurgy parts, and other porous components.

Q2. What defects can the machine solve?
It effectively seals micro-porosity, pinholes, leakage paths, and casting defects, improving pressure resistance and product reliability.

Q3. Which industries use this machine?
It is widely used in the automotive, aerospace, electronics, hydraulic, pneumatic, refrigeration, medical equipment, and precision manufacturing industries.

Q4. What impregnation resin can be used?
The machine is compatible with most anaerobic impregnation resins and other industrial sealing resins. We can also recommend suitable resin brands according to your application.

Q5. Is the machine automatic?
Yes. We offer fully automatic, semi-automatic, and customized systems according to your production capacity and process requirements.

Q6. Can the machine be customized?
Yes. Tank size, loading capacity, automation level, PLC control system, voltage, and workflow can all be customized.

Q7. What voltage is available?
Common voltages include 220V, 380V, and other customized power specifications for different countries.

Q8. How can I choose the right model?
Please provide the following information,Product material,Product dimensions,Leakage requirements,Daily production capacity,Photos or drawings of the workpiece.Our engineers will recommend the most suitable solution for your application.

Q9. What is the production capacity?
The capacity depends on the workpiece size and process cycle. We can design the most suitable model based on your production requirements.

Q10. Do you provide installation and training?
Yes. We provide installation guidance, operation training, maintenance support, and online technical assistance.

Q11. What warranty do you provide?
The standard warranty is 12 months after installation or shipment, excluding consumable parts. Lifetime technical support is available.

Q12. How long is the delivery time?
Normally, production takes about 15–30 days depending on the machine configuration and customization requirements.
