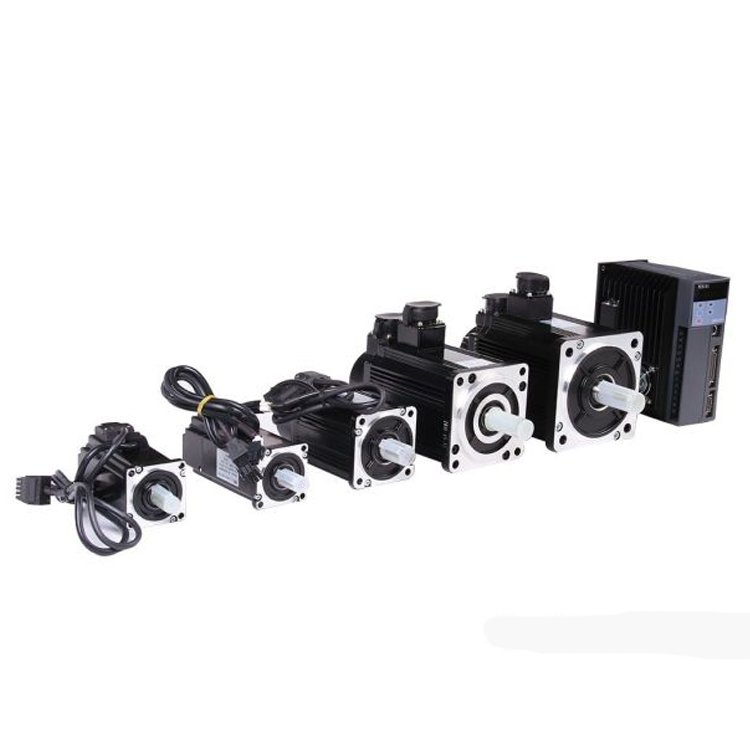

HY-S1 servo motor, servo drive series

Servo drive technical specifications

Model: HY-S1 series

Specifications: 200W~1500W

Input power supply voltage: single-phase/three-phase 187~240AC

Feedback mode: 2500P/R incremental encoder (standard)

Control mode: SVPWM controller

Control mode: manual/automatic

Built-in brake resistor: 40Ω/100W

Position control mode:

Maximum input pulse frequency: 0~500KHZ, 5V High-speed optocoupler

Pulse command mode: pulse + direction, A phase + B phase, CW pulse + CCW pulse

Command smoothing mode: low-pass smoothing filter, FIR filter

Electronic gear ratio: 1~32767

Gain mode switching: speed, position error, positioning completion

Speed/torque control mode:

Voltage range: –10~10VDC

Input impedance: 20KΩ, non-isolated

Speed control range: 1:5000

Command smoothing method: S-type filter, T-type filter

Torque limit: differential setting or analog input

Bandwidth: 600Hz

Operation and display:

5 buttons for jog and trapezoidal wave testing, as well as modification and storage of each loop parameter and input and output signal limited level;

6 LEDs for displaying speed, current, position error, driver version number and address ID value, etc.
