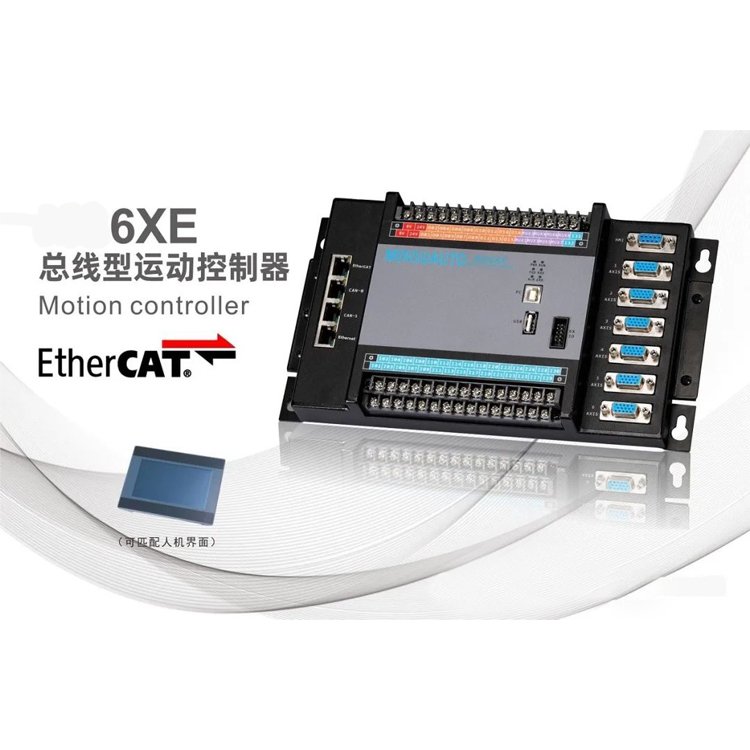

HY6XE automatic winding machine customized motion control system, automated production line motion controller

Motion control indicators

Number of control axes: 32 axes (EtherCAT + 6-axis pulse)

Pulse range: 100HZ~2MHZ

Pulse mode: direction + pulse

Control mode: position/speed

Speed curve: asymmetric linear/S acceleration/deceleration

Support electronic gears, multi-axis linear interpolation, circular interpolation, spiral interpolation,

Continuous interpolation, space circular interpolation, customized instructions

I/O control

General digital input: 32 (expandable to 128)

General digital input minimum current: 1mA

General digital output: 16 (expandable to 128)

General digital output maximum current: 0.5A

Support axis-specific I/O configuration

Other parameters

Expansion bus: RS 485 CAN-Open

Support U disk management function, customer customization service

Touch screen interface: RS 232 ModBus

Product storage quantity: 256

Time password function: WeChat applet management

Multi-task parallel processing: 32

Programming language: G code

Power supply: DC 24V, Max 10W

Applications: customized motion control systems, such as automated production lines, fully automatic winding machines, etc.
