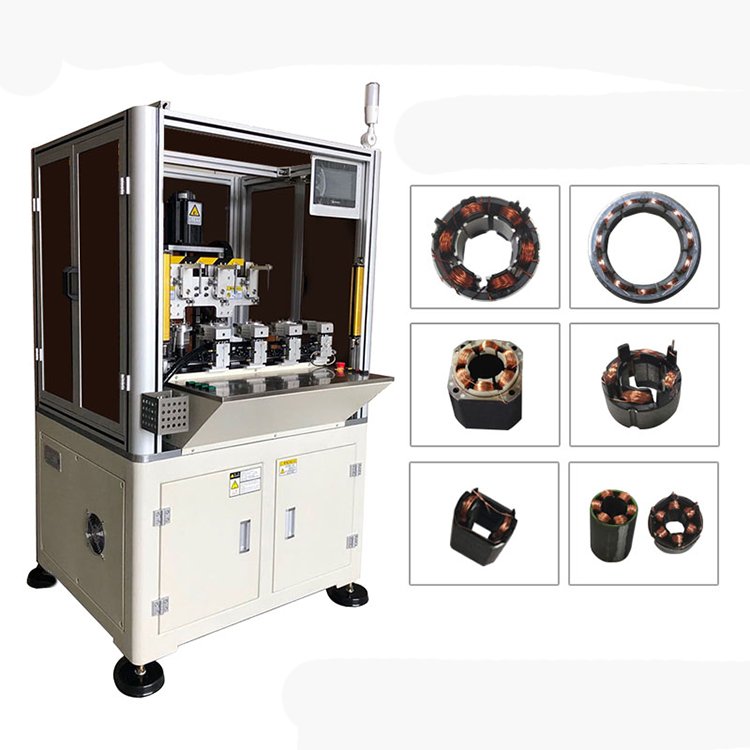

HY-DZ02 Household Appliance Motor Stator fully automatic winding machine (Four-station)

 Parameters:
Model: HY-DZ02
Optional wheelbase: 155mm/195mm
Applicable winding diameter: Φ0.08-Φ1.0mm (change the wire rack according to the wire diameter)
Number of workstations: 4 workstations
Number of slots: 4-36 slots
Stator outer diameter: Φ20-100mm (customizable if out of range)
Stator inner diameter: Φ12-80mm
Stator thickness: Φ5-70mm (customizable if out of range)
Transmission servo: 3000W set
Transfer servo: 2000W sets
Wire arrangement servo: 750W sets
Air pressure: 7kg/cm²
Power supply: 3-phase 380V 50 15A
Dimensions: about 1000W*1100L*1700H
Weight: about 680kg
Speed: No-load speed can reach 800r/min (depending on actual wire diameter and stator size)
Controller: Touch motion controller

Application range:

Household appliance motors, medical equipment motors, industrial fans, water pumps, new energy vehicles,

rotary transformers, sensors, servo motors, stepper motors, water pump motors, vacuum cleaner motors,

power tool motors and other stator cores, suitable for winding various types of brushless motors.

Product features:
◆ There are 4 stations working at the same time, and the no-load speed reaches 800r/min
◆ Strong versatility, simple and fast changeover; all imported servo motor drive, accurate and stable
◆ All imported high-precision ball screws and guide rails to ensure equipment accuracy and long-term durability
◆ The chassis is a thickened square tube welded and cast, with a stable chassis, strong overall stability and strong rigidity.
