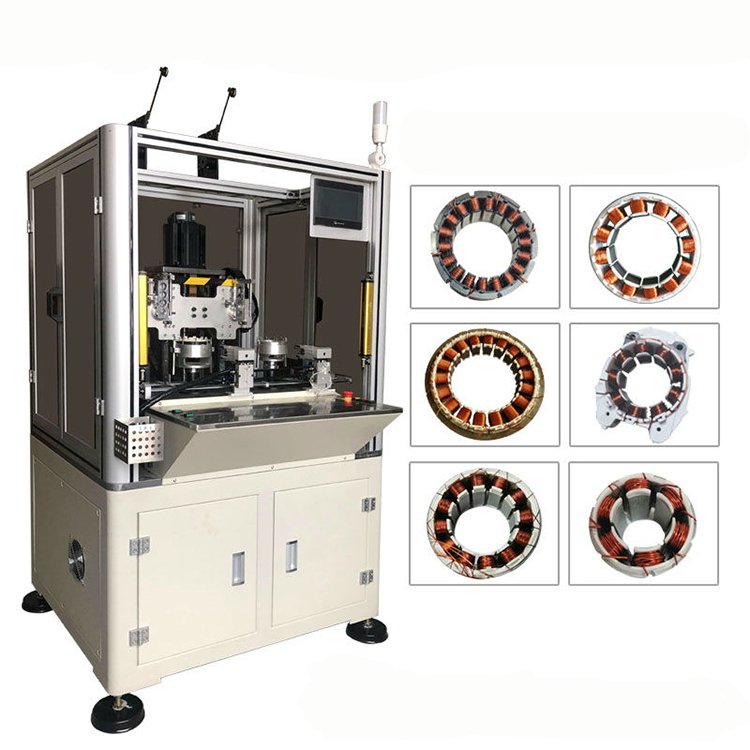

HY-DZ01 Electric tool motor stator fully automatic winding machine (double station)

Parameters:
Model: HY-DZ01
Optional wheelbase: 230mm/305mm
Applicable winding diameter: Φ0.08-Φ1.3mm (change the wire rack according to the wire diameter)
Number of workstations: two workstations
Number of slots: 4-36 slots
Stator outer diameter: Φ20-130mm (customizable if out of range)
Stator inner diameter: Φ12-100mm
Stator thickness: 5-80mm (customizable if out of range)
Transmission servo: 3000W two sets
Transfer servo: 3000W one set
Wire arrangement servo: 750W two sets
Air pressure: 7kg/cm²
Power supply: 3-phase 380V 50Hz 15A
Dimensions: 1000(L)*1100W*1700(H)mm
Weight: about 650kg
Speed: No-load speed can reach 800r/min (depending on actual wire diameter and stator size)
Controller: Touch motion controller

Application range:
Applicable to power tools, water pumps, stepper motors, vacuum cleaner motors, gates, winches,

and applicable but not limited to brushless motor winding operations.

Machine features:
◆ This machine supports customized non-standard large diameter core winding solutions
◆ The wire outlet tooling at both ends can be replaced, supporting thick wire, double wire, and triple wire
◆ The pulling force exceeds 6 kg, and 4-36 slots can be changed infinitely
◆ Quickly change the mold fixture, simple operation, convenient and reliable
