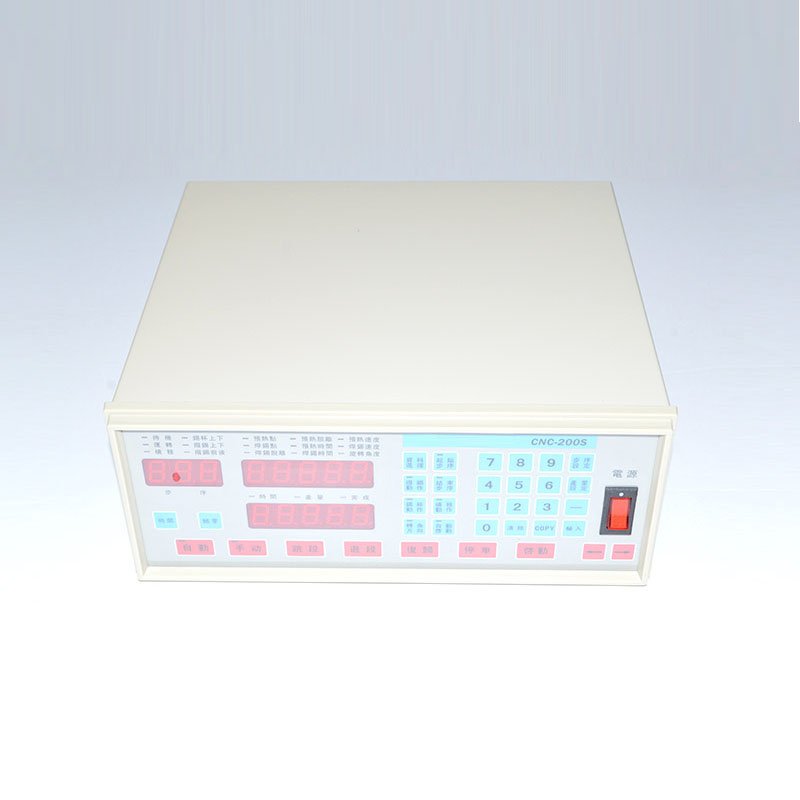

CNC200S Soldering Machine Controller

main feature:
◆Using single-chip microprocessor design, stronger functions, smaller size, and strong anti-interference ability
◆The memory uses FLASH ROM, which has a large capacity and can store 1000 steps of solder data. Each step can be individually set for 9 types of solder data and 5 function options. The solder data will not be lost after the power is turned off.
◆Can work automatically, support (rotation, dial tin, tin cup, horizontal movement, detection) and other functions
◆The operation and operation mode can be changed according to different models and use occasions, and the scope of use is wider
◆The position of the solder axis can be set by teaching or keys, and the data display window can display the current position of the solder axis
◆The soldering axis provides 99-segment positioning speed selection
◆Wide setting range of solder shaft displacement unit, suitable for various specifications of screws
◆A group of editing password settings to prevent the setting data from being changed arbitrarily
◆Strong compatibility, can directly replace the same type of controller
Basic parameters:

◆Panel display: digital tube display
◆Soldering shaft motor: 2A two-phase hybrid stepping motor/external motor driver
◆Rotating shaft motor: 1A two-phase hybrid stepping motor/external motor driver
◆Power supply voltage: AC220V/110V±10%
◆Chassis size: 270mm*250mm*110mm
