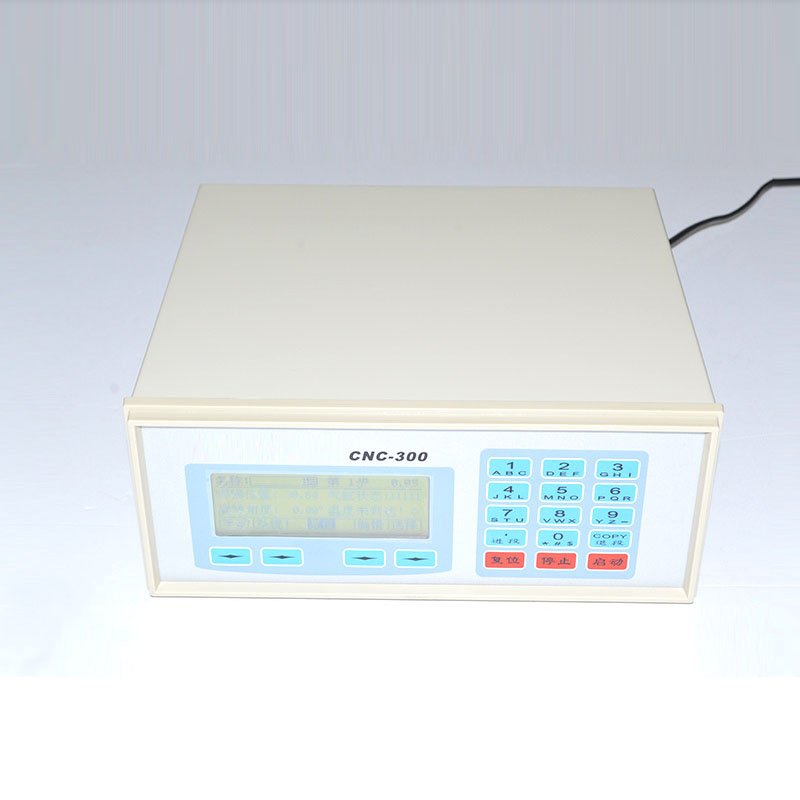

CNC300SS Soldering Machine Controller
main feature:
Large screen 192×64 dot matrix LCD display.
Using CPLD technology, high reliability and strong anti-interference ability.
Using FLASH ROM can store 100 kinds of solder data (999 segments), each solder data is named separately, you can call any one of them for soldering at any time, and the data will not be lost if the power is suddenly cut off.
The stepping motor of soldering shaft and rotating shaft (automatic flip function) provides 0-99 speed selection.
It can work automatically and supports (rotation, tin dialing, tin cup, lateral movement, detection, rosin, tinning) and other functions.
The parameters of the soldering axis can be set by the adjustment method, which is convenient for debugging the equipment.
In the manual state, the cylinder and the detection switch can be tested for abnormalities.
Automatic fault identification function, error occurs during parameter setting or operation, and the error location is automatically prompted.
It has strong compatibility and can directly replace the same type of controller or PLC.
The program can provide free upgrades.
Basic parameters:
Panel display: LCD screen display.
Soldering shaft motor: 2A two-phase hybrid stepping motor/external motor driver.
Rotating shaft motor: 1A two-phase hybrid stepping motor/external motor driver.
Power supply voltage: AC220V/110V±10%
Chassis size: 270mm*250mm*110mm
