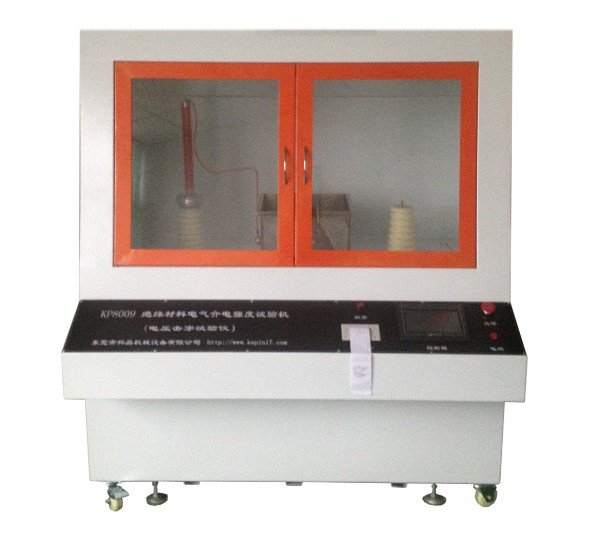

KP8009 solid insulating materials electrical dielectric strength test
machine (similar breakdown products are: KP8106 enameled breakdown
voltage tester)
Applicable to solid insulating material such as: strength and withstand voltage test of time plastics, films, resins, mica, ceramics, glass, paint and other insulating dielectric breakdown voltage at power frequency.
First, the standard: GB1408.1, GB / T1695, IEC60243
GB1408.1, IEC60243-1 "electric strength of solid insulating materials - Test methods --- frequency under test", GB / T1695-2005 "vulcanized rubber frequency breakdown voltage strength and voltage resistance measurement method" GB / T3333 GB12656 and ASTM D149 test standards.
Second, the parameters
1. The voltage range: 0 ~ 50KV (can be customized more);
2, after tripping regulator automatically returns to zero;
3, zero closing, with automatic, manual lifting voltage;
4, import leakage protection, reliable protection of personal safety;
5, overcurrent, threshold and other security features;
6, voltage, current display, measurement accuracy of ± 2%, the breakdown voltage is maintained;
7, the test electrode: electrode diameter 25mm, height 25mm; lower electrode diameter 25mm, height 25mm (electrode: stainless steel);.
8, high-voltage transformer rated capacity: 10KVA;
9, the rated input / output voltage: 220V / 50KV;
10, rated input / output current: 20A / 0.09A;
11, the control system: Siemens PLC + Taiwan Wei Lun touch screen control, control precision, simple operation, completely user-friendly design, electrical strength test ends automatically calculate and generate reports, timely panel thermal printer can print test results;
Optional five-speed speed boost: 5V, 50V, 100V, 500V, 1000,2000V;
12, with easy accessibility oil bath (material: stainless steel: it according to customer requirements, but also can do an oil bath);
13, instrument components: the electric contact voltage regulator, control box, to protect the resistance, electrode box, bath oil composition;
14, Chassis Material: SUS304 stainless steel;
15, Dimensions: 1.4 meters long, 1.1 meters wide, 1.7 meters high
16, Weight: about 240KG
