Description

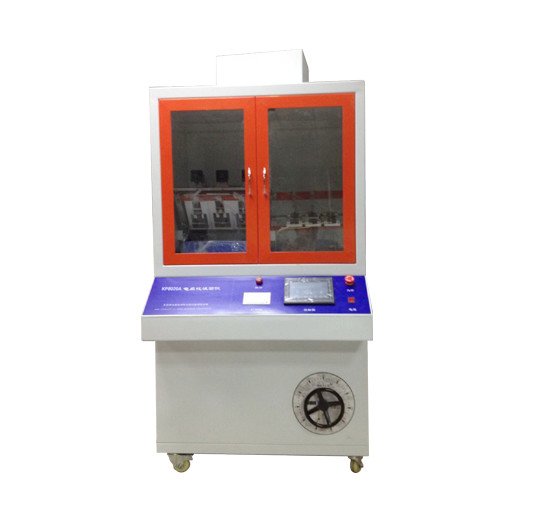

KP8028A arc resistance tester
High voltage low current arc resistance tester
Mainly applies to: GB / T 1411-2002 dry solid insulating material resistant to high voltage, low current arc discharges
Standard: GB1411, IPC650, IEC 61621, ASTMD495, GB / T 1411-2002
I. Overview and functions:
The test machine is according to GB1411, IPC650, IEC 61621, ASTMD495 design and manufacturing, and in accordance with JEC 149, UL 746A and other test methods. Used in electrical, electronics and household appliances industries such as electrical arc resistance performance evaluation plastics, resins and plastic insulating material such as insulating paint is mainly applicable to solid insulating materials such as: plastics, films, resins, mica, ceramics, glass, insulating oil , arc-resistant performance test insulating paint, cardboard and other media; arc resistance test machine using computer control, was observed during the test online test curve; automatic storage test conditions and test results and other data, and can access, display and print.
Second, the main technical requirements:
1, the input voltage: AC 220 V
2, the output voltage: AC 0--20 KV;
3, electrical capacity: 1.5 KVA
4, test mode: intermittent arc, continuous arc
5, test current: 10MA-20MA-30MA-40MA optional
6, the test voltage control error: ? 1%
7, the arc-off time error: <5ms
8, the test voltage is continuously adjustable: 0--20 KV
9, electrode Specifications: Stainless steel plate electrode 25.4mm * 12.7mm * 0.15mm
Tungsten Electrode 56mm * 7mm * 30mm
Electrode arrangement angle of 110 degrees
Electrode weight: 50G
10, security measures: (1) overpressure protection
(2) over-current protection
(3) short-circuit protection
(4) Security Door Opener protection
(5) Software misuse protection
Third, the main configurations:
1, the host of a test
2,2 million volts of a high-voltage generator
3, microcomputer automatic voltage regulator device set (serial port)
4, the voltage and current collection means a collection of isolated transmitter
5, the test electrode: two
6, the current release of a rod (resin type)
7, the control software of a computer arc resistance
8, a computer (Lenovo)
9, a color inkjet printer brand
10, a program CD
11, a product manual
12, a verification certificate
13, a certificate
14, a random set of tools
