Description

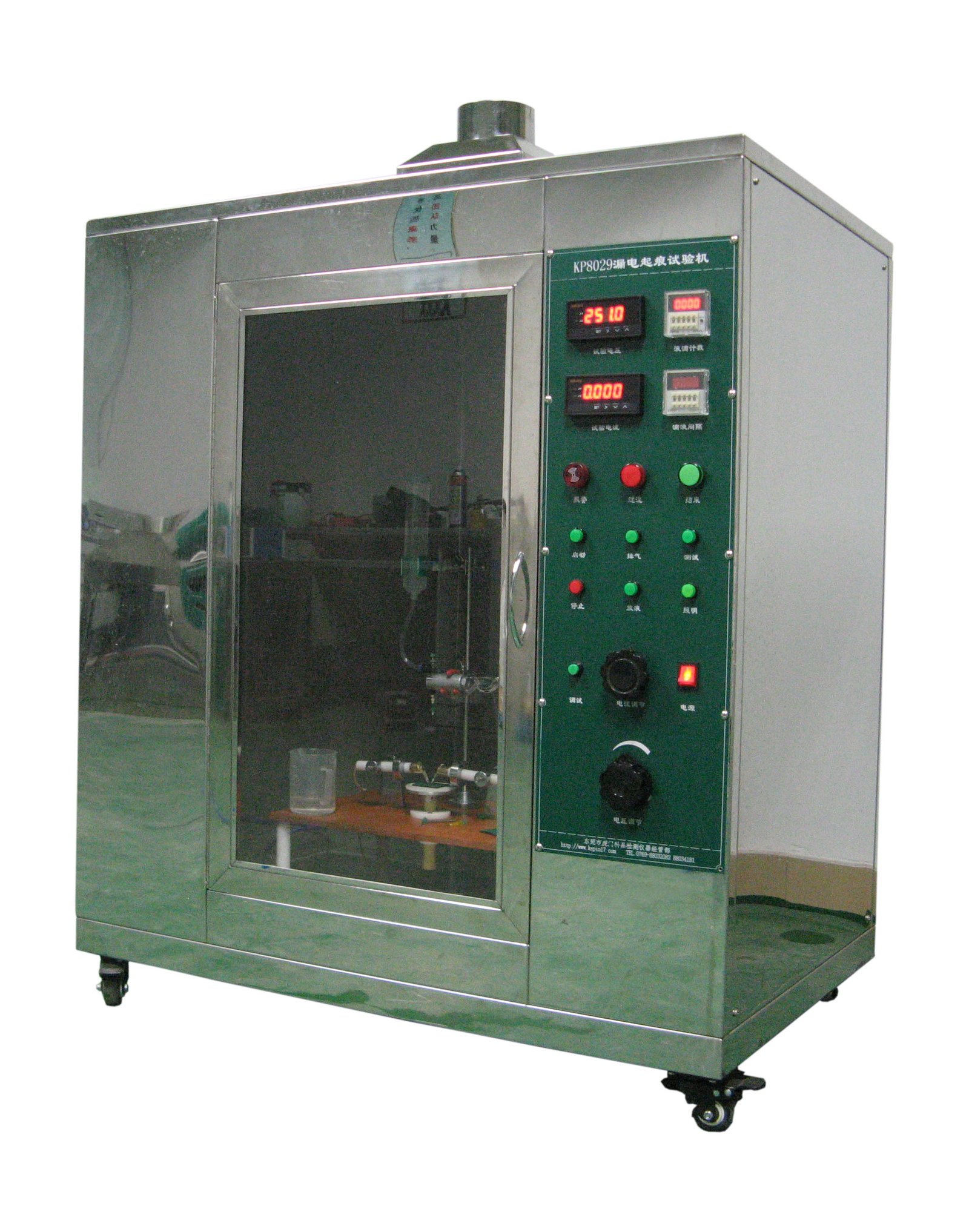

KP8029 Tracking test machine
Also known as: to tracking tester, resistance to tracking tester
Overview:
The instrument uses a rectangular platinum electrodes, bipolar sample forces were 1.0N ± 0.05N. Applied voltage is adjustable (48 ~ 60Hz) between 100 ~ 600V, short circuit current 1.0 ± 0.1A, the voltage drop should not when more than 10%, when the test circuit, short circuit, leakage current is equal to or greater than 0.5A, the time for 2 seconds, the relay action, cut off the current, indicating that the test failed. Dropping means adjustable time constant, precise control of the amount of the liquid droplet size of 44 ~ 50 drops / cm3 and drip interval 30 ± 5 seconds.
Standard: GB / T 4207-2003, GB4706.1 ASTM D 3638-92, IEC60112, UL746A
Application: This tester can measure voltage up to 600V in the solid electrical insulating materials in the electric field surface is exposed to a relative resistance to tracking performance when water containing impurities.
An electrode: cross-sectional area of 2mm × 5mm two rectangular platinum electrodes. One end of the edge bevel of 30 °.
Second, the surface force: 1.0 ± 0.05N
Third, test the voltage: 100 ~ 600V
Fourth, the maximum test current: 3A
Five, two-electrode distance: 4.0mm
Six, dropping device: drip interval can be set
Seven, the chamber volume: 0.5M3, depth x width x height: 60x 95x 90cm
Eight Dimensions: D x W x H: 61x 120x 105cm
Nine, Carton Material: electrostatic paint and stainless steel mirror. According to customer requirements and business talk given situation and chosen
Want to know Tracking tester more information, please click on the following link
