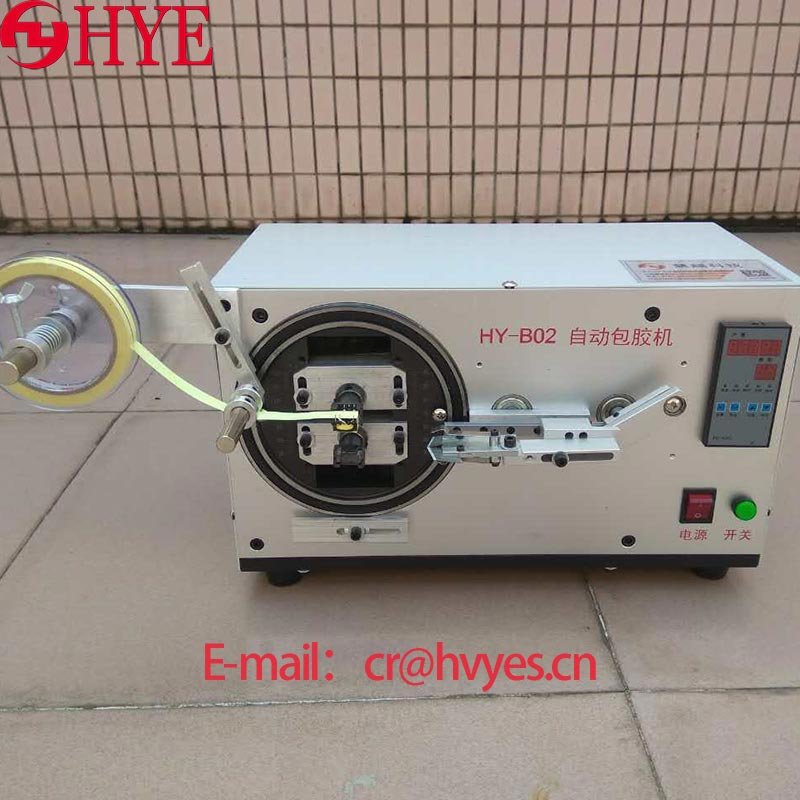

HY-B02 transformer packaging tape machine controller description

Our HY-B02 automatic laminating machine is very simple in terms of control. The first operation of the friend can refer to the following operating instructions, even if you have not used it, you can quickly get started:

HY-B02 automatic rubberizing machine controller operation instructions

First, the panel description (MS-100 controller)
(1). (Settings) button: used to select and confirm each menu;
(2). (Bit selection) key: The manual scrolling operation in the standby state and the digital selection in the setting state;
(3). (+) key: the manual shift operation in the standby state and the digital increment cycle in the set state;
(4). (-) key: The manual cutting action in the standby state and the digital decrement cycle in the setting state;
(5). (Reset) key: used to set the status of the parameter reset function;
(6). (Yield) button: used to go directly from any menu to the standby state or motion state and the production count state;

Second, the panel description: (Operation instructions)
(1) “Start” button: start/stop the double action button, press this button in the standby state to run the machine, press this button during the operation, the operation stops; click the machine again to continue the operation from the disconnection until the action The process is complete.
(2) Power supply: When the power switch is ON, the light is on and the power is on.

           When the power switch is OFF, the light is off and the power is turned off.
