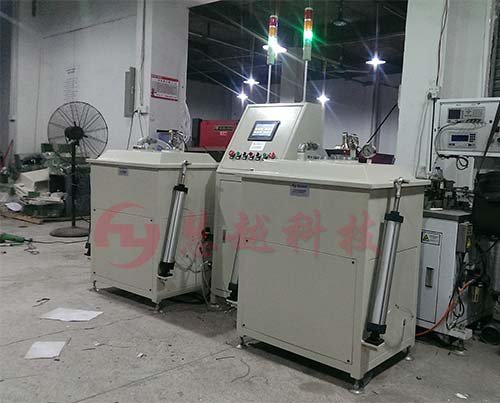

Transformer, inductive coil vacuum dip machine operation steps

1. Open the impregnation cover and place the neat product impregnation tray on the cylinder bracket. Close the impregnation cover and lock the quick clamp.

2. Second, twist the start switch, the vacuum pump starts. When the pressure gauge is displayed to 30-40mmhg, open the ball valve switch under the cylinder to pump the varnish into the cylinder.

3. Twist the spotlight switch and observe by placing the glass. When the water reaches the required amount, close the ball valve under the cylinder.

4. When the barometer pointer reaches 700mmhg or more, press the start switch to stop. The alarm is given when the vacuum impregnation time reaches the set time. Open the cap valve switch and vent the gas when the gauge finger returns to 0mmhg. Open the ball valve switch under the cylinder and turn off the ball valve switch after the cylinder has been drained.

5. Turn on the start switch and start the vacuum pump. When the gauge pointer reaches 700mmhg or more, press the stop switch. After the vacuum is reached, turn on the power switch and start timing. Set the time to alarm, open the ball valve switch and discharge the gas.

6. After the vacuum is completed, open the cylinder head, take out the product, and place it in the filter tank on the right to filter. The fully automatic impregnation machine is completed.
