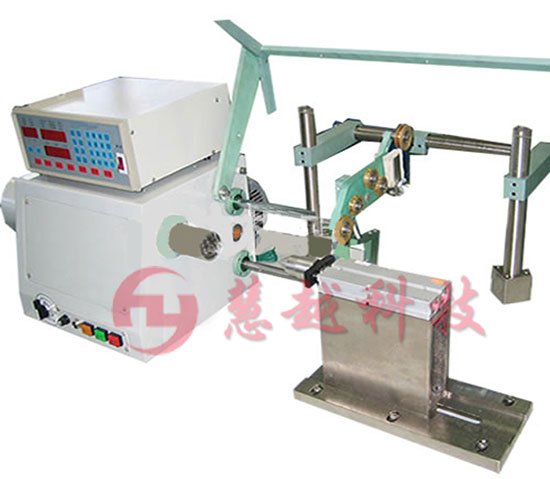

HY-R08 transformer large torque winding machine
1. Product description:
1 suitable for ballast, rectifier and other large coil, transformer:
2 Taiwan controller, AC frequency conversion, AC motor, environmental protection, low noise;
3 multi-function microcomputer design, data set is easy, and the shutdown can save the data;
4 teach function design, can be easily set up around the point and the width;
5.0~999 group sequential setting capacity, the collocation strong AC motor and imported from Japan Sanyo step motor, can be easily set is reversed, cross slot and the density of the winding work;
6 torque, the use of thick wire products, the maximum size of the 3.0mm line can be wound around the product.
7 strong tail seat to ensure the clamping force and rotation accuracy.
Two. Product specifications:
1 wire diameter range (mm):0.5-5.0 are used (standard line diameter 3, can be customized according to customer requirements)
2 maximum speed (RPM):1200
3 spool number: 1
4 spindle motor: 750W/1500W AC
5 winding width (mm):120
6 row winding motor: Stepping Motor 9V
The 7 line width (mm):210
8 net (kg):65
Three. Delivery methods
Hui Yue transformer large torque winding machine delivery mode:
1 the company free home delivery.
2 wooden packaging logistics sent (ensure perfect lossless)
Four. Testing and certification
Hui the automation technology of large torque around the line machine factory have a long test test, on the operation of electric machinery have professional QC inspection records record.
