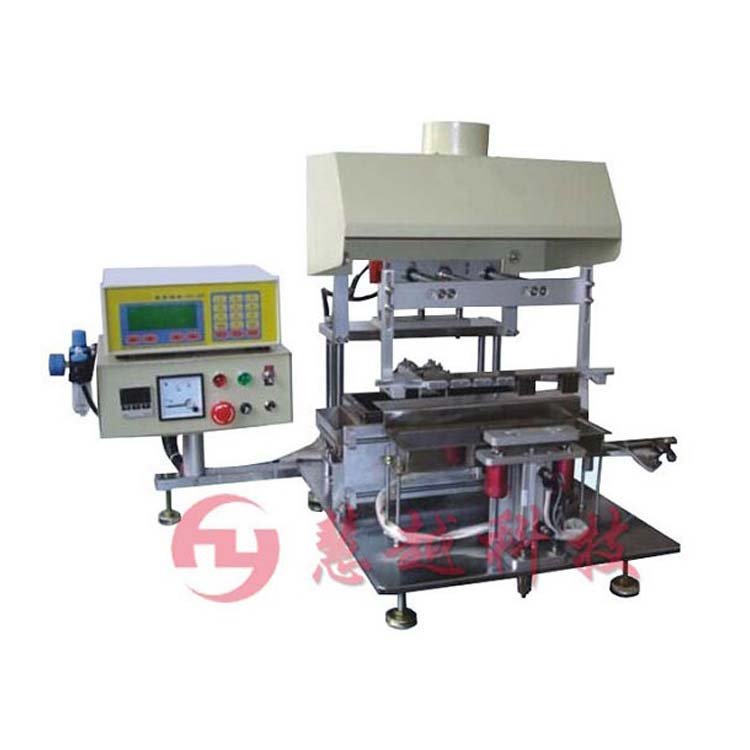

HY-H02 flip-type automatic soldering tin Applicable products: high-frequency, low-frequency transformers, inductors, relays, filters, inductors, rectifiers, inductors.







SMT transformers and transformers inductors and other high-precision solder the use of electronic components and solder products generally require the use. A variety of simulation of human hand movement curve, and 360 degrees arbitrarily set the flip angle function, SMT and PIN TYPE can be welded to all types of vertical and horizontal products.

HY-H02 flip-type automatic soldering machine - Features
1, up and down movement using stepper motor driven ball screw, stepper motor accuracy of 0.01mm, solder depth and accurate to provide 0-99 segment speed selection.
2, flip-axis direct drive using stepper motor, flip speed, angular positioning accuracy and provides 0-99 speed selection.
3, with a pre-welding function, which can effectively reduce the phenomenon of splashing beads.
4, full-function solder action. Can choose sub-cup, corner, translation and flux agencies and other functions
5, the height of solder can be set 0 ~ 76mm.
6, solder time, and its range from 0.1 seconds to 9.9 seconds.
7, dual-heating pipe, dissolved tin a short time, temperature stability. The use of lead-free titanium stove.
8, the temperature setting range of 500 ?.

Flip-type soldering machine technical parameters:
Power supply: AC 220V 50HZ
Air pressure: 5 kg / cm2
Power: 2.5KW
Machine Size: 890 * 560 * 710mm
Tin furnace size: 300 * 110 * 75 mm

Weight: 79kg
