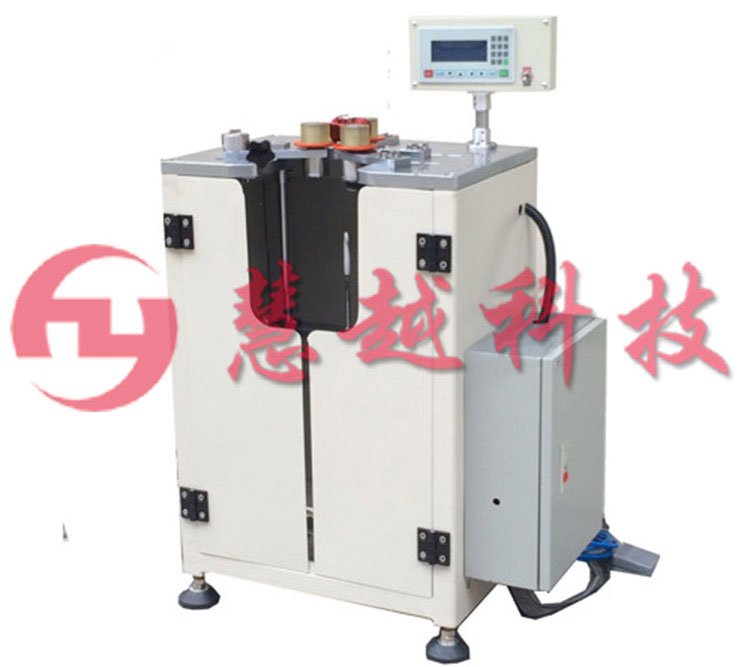

HYR28 hook wire ring Winder features
L new appearance, reasonable structure, the use of high-quality steel processing, machine weight, good stability.
L this model adopts digital single axis stepper control system, the operation is simple, the maintenance is little, the fault is low.
L use stepper drive, low noise, cable equipped with constant current chopper drive mode, follow quickly and precision and the fittings with brand products, excellent performance, long life cycle, adapt to the working environment.
L can be pumped storage Dan 100 step sequence, set number of laps, line size, velocity and other parameters, with a precise count and memory blackouts, overload current protection, anti-jamming function.
Winding products
The common mode inductor, choke coil, three-phase current transformer, coarse small diameter inner hole of toroidal transformer and the type of special product.
Video link address: http://www.hvyes.cn/news/news343.htm
HYR28 hook wire ring Winder parameters
Each output: 1PCS
Control mode: digital single axis stepper controller
Working pressure: 4-6kgf/ C square meters
Clamp head diameter: Phi 50mm
Specifications
Minimum core diameter: 15mm
Max finished diameter: 80mm
Minimum finished product inner diameter: 5mm
Minimum winding diameter: 0.3mm
Maximum winding diameter: 2mm
Maximum height of finished product: 50mm
The standard needle scaler
75B.0021P 0.8mm (A) 3.2mm
75B.0021P 1.2mm (B) 4.8mm
75B.0021P 1.7mm (C) 6.4mm
75B.0021P 2.0mm (D) 9.5mm
