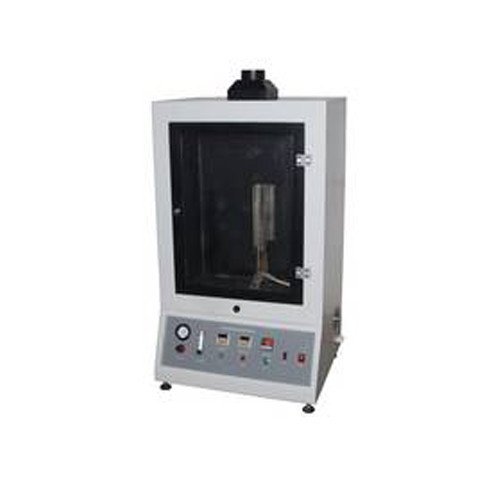

KP8012A rigid foam vertical / horizontal burning test machine
Overview:
This machine is suitable for laboratory evaluation of vertical combustion properties of rigid foam plastic or foam rubber; accurate test result, a high degree of test automation. Under laboratory conditions suitable for assessment according to ISO 845: 1985 Determination of density less than 250kg / m3 foam small sample combustion performance levels in a small flame.
Test Standard: GB / T8333-2008, GB / T8332-2008, ISO9772, ISO 845: 1985
GB / T8333-2008 Test method for flammability of hard foam vertical combustion method;. (Equivalent to the American Society for Testing and Materials standard GB / T8332-2008 foam burning behavior of horizontal burning method (equivalent to the international standard "ISO9772 foam plastics - small sample at a small flame burning conditions determine the level of performance ") and ASTM D3014-04a test standards.
First, the main specifications:
1.1 Instrument constituting: hood, chimney, sample holder and a control section;
1.2 chimney: diameter 64mm, length 305mm, stainless steel, within 0.025 thick aluminum foil;
1.3 sample holder: length 191mm, width 13mm made of stainless steel, back with a hook;
1.4 Balance: 300g / 0.01g (owned);
1.5 Gas Flow: 0 ~ 1000 ml / min adjustable;
1.6 automatic timing, automatic ignition
1.7 Flame height: 25 ~ 35mm high blue flame.
1.8 timer: 0 ~ 99.99S arbitrarily set accuracy: 1s / h
1.9 Gas: natural gas more than 95% pure.
Second, the appearance of the instrument:
2.1 Case: 0.15m3 (730mm wide × 280mm depth × 750mm high) using CNC machining, nice shape arc quality SUS304 stainless material / paint, with a beautiful rust and corrosion characteristics.
2.2 has a box at the top exhaust ventilation system when the test is completed, can exhaust emissions to the outdoors; during the test, the system is stopped.
2.3 Case has positive test process can be sealed glass observation window for easy observation test situation.
Third, the horizontal burning test:
3.1 Burner: import Bunsen burner inner diameter 9.5mm, length 100mm.
3.2 light coat a top nozzle wing, wing top opening 48mm, inner width 1.3mm
3.3 Flame height: blue inner flame 38mm, measured from the top of the wing temperature 1000 ?
3.4 Sample care network: ?0.8mm steel wire mesh each side 6.4mm, net length 215mm, width 75mm, height 13mm
Fourth, the vertical burning test:
4.1 Burner: import Bunsen burner. A cylinder inner diameter 9.5mm. 15 ° to the vertical line and
4.2 Flame height: blue inner flame 25 ~ 35mm, inner flame tip temperature is 960 ?
4.3 sample holder: stainless steel, length 191mm, width 13mm, back with hooks.
