Description

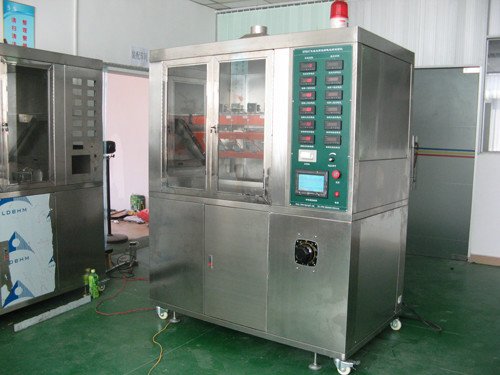

KP8020 high voltage tracking index tester
First, use
High voltage tracking index tester suitable for electrical and electronic products, appliances and materials resistance to tracking and erosion tests, simulated in the frequency (48Hz - 62Hz), the liquid contaminant and inclined plane specimens by measuring the resistance to tracking and erosion under evaluation for use in harsh environmental conditions, electrical insulating materials resistance to tracking and erosion levels. This machine is strictly in accordance with GB / T6553-2003 and IEC60587-1984 design and manufacturing.
Second, performance indicators
1, the electrode: 0.5mm thick Material: Stainless Steel;
2, the upper and lower electrode distance: 50.0mm ± 0.1;
3, the test voltage: 100V-6000V infinitely adjustable;
4, the regulator: Output: 0 ~ 250V can be adjusted, capacity 5KVA;
5, test transformer: Capacity 5KVA, the maximum output voltage AC6000V (or DC6000V optional);
6, high-precision voltage regulator: Output AC220V power 6000W, accuracy of ± 1%;
7, when the loop current is 60mA, the output voltage is turned off;
8, the test time: 6 hours;
9, dropping accuracy: 0.2%;
10, voltage stability: ± 1%;
11, tracking judgment:
According to standard GB / T6553-2003 / 4.1.2 provides that the applied voltage (2.5k V, 3. 5k V and 4.5k V) on the sample, and to a certain flow rate of liquid drops pollution, current 60mA or less continuous but 6H flow is through;
12, dropping device:
Leif precision using a peristaltic pump, flow rate range of 0.00185 ~ 20 ml / min, working speed of 0.1 to 50 rev / min, flow rate accuracy error: <0.2%;
13, the output voltage: AC / DC (switchable)
14, the number of experimental groups: five groups
15, the control device: Siemens PLC + Taiwan Wei Lun touch screen control, control precision, simple operation, completely user-friendly design, the test report is generated automatically at the end, the panel thermal printer can print test results in due course;
15, the studio Volume: 900L * 650W * 950H (mm); volume of 0.56m3.
16, Chassis: SUS304 stainless steel (drawing surface);
17, sewage tank 316 stainless steel, the installation of a closed system.
18, the instrument Dimensions: 1300L * 700W * 1800H (mm)
19, Weight: about 200KG
