HUIYUE (DongGuan City) Automation Equipment Co., Ltd.
Description

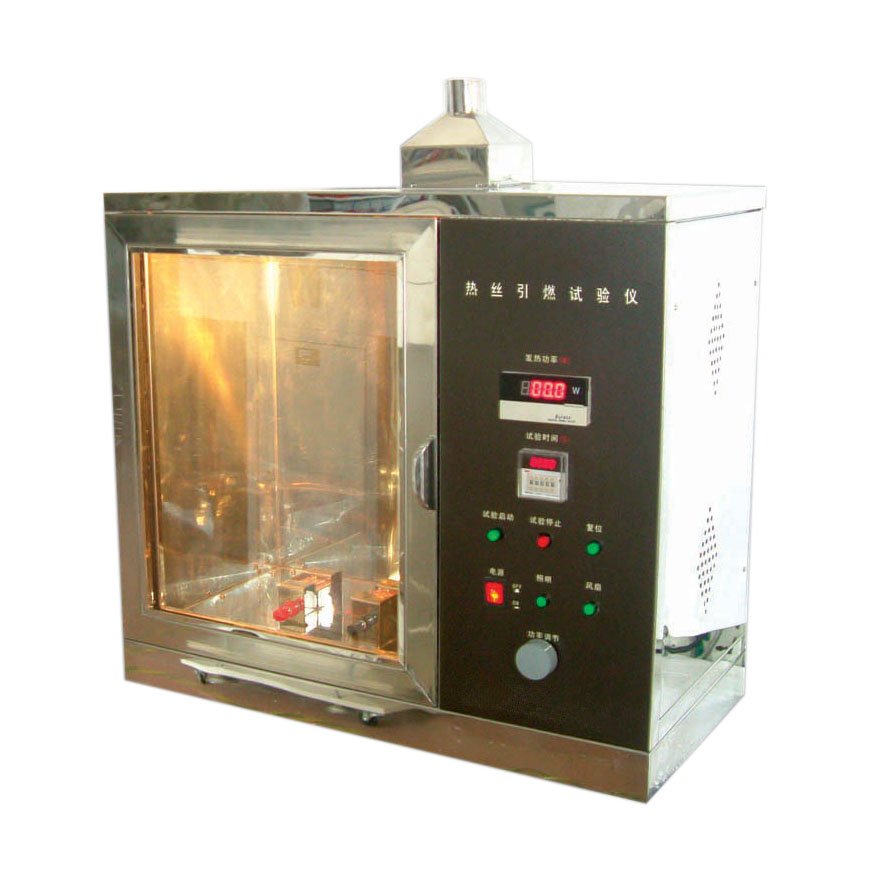

KP8092 hot wire ignition test machine
Mainly applied to components or parts in case of failure or overload conditions, may reach too high a temperature or light them near the parts, hot wire ignition test simulates the glow element overload resistance like heat or ignition source resulting in a short time thermal stress, using a technology assessment fire risk, suitable for electric and electronic products, components, household appliances, plastic and non-metallic parts with insulating material parts such as: the switch housing, relay sockets....
Second, in line with standard: fire hazard simulation test equipment standards for GB / T4943, IEC 60950, ASTMD3874UL746A-2000, UL746C-2000, IEC829-1998 like.
Third, the technical parameters :( Our company is a professional manufacturer, technical parameters can be customized) welcome to equipment details of the consultation
3.1 Working stations: 1 station.
3.2 electric wire: ¢ 0.5MM, Ni80 / Cr20 ,,, length 250MM ± 5MM;
3.3 winding pitch: 6.35MM
3.4 Annealing time: 0.1S ~ 9999.9Ss can be arbitrarily set
3.5 Test time: 0.1S ~ 9999.9Ss can be arbitrarily set
3.6 Annealing bracket: distance 250MM
3.7 sample holder: pitch 75MM, 60MM height
3.8 Winding tension: 5.1N
3.9 Annealing power: 0.26W / MM
3.10 Power AC220V / 50Hz
Fourth, the device structure:
4.1 Case> 0.5 m3, the use of CNC machining, nice shape arc. Quality SUS304 stainless material / paint, with a beautiful rust and corrosion characteristics.
4.2 exhaust ventilation system is provided at the top of the box, in the completion of the test, it can exhaust emissions to the outdoors; during the test, the system is stopped.
4.3 Case has positive test process can be sealed glass observation window for easy observation test case
4.4 Mechanical parts Material: All mechanical parts are made of SUS304 + brass material, surface thick electrical degrees, corrosion and rust.
