Description

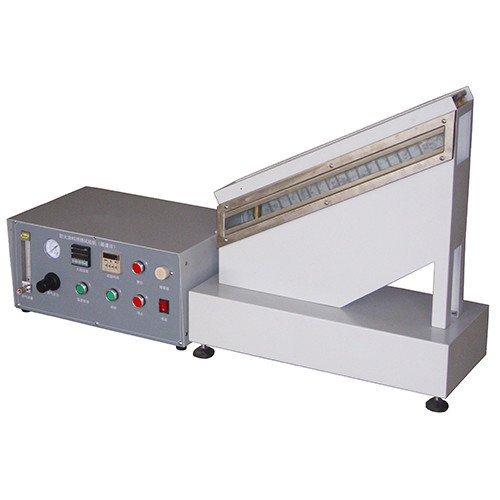

KP8043B fireproof paint burning test machine (tunnel method)
1. Scope:
? applicable under laboratory conditions to test small-scale test furnace coated flame propagation properties of combustible substrate surface finishing fire retardant paints Test Method for.
2. standard: ? GB / T 12441-2005 (Appendix B).
3. The main parameters:
? test stations: 1 station.
? sample size: L900 * W900 thickness of 5mm, smooth surface.
? temperature control system: digital temperature control table.
? thermocouple: diameter 2mm, ? grade accuracy, range 1300 ?.
? timer error is less than 1s / h.
? Auto Buzzer: During the test, once every 15S alarm to alert the operator to record the current status of combustion, combustion lasted 4min.
? gas source: liquefied petroleum gas or natural gas. (Customer-owned)
? gas flow rate: 860ml / min can be adjusted.
? flame temperature: 900 ? ± 2 ?
? Power requirements: AC220 (± 10%) V / 50HZ
? The instrument structure from the main control box, most of the combustion chamber 2 components. Control box is removable.
? combustion chamber dimensions: 610? × 250 mm × 520?.
? frame material made of high quality 304 stainless steel welded square pass, control box made of (t = 1.2mm) electrostatic plate, surface spray, more clean and beautiful.
? torch: brass, top diameter is 20mm, height of about 200mm.
? control box with relay control system, all electronic originals are used in the leading domestic brands, to better ensure detection accuracy and performance of the machine.
? imported intelligent P.I.D temperature thermostat (with automatic calculation of the function) and high-precision PT100 thermocouple sensors and timers.
? devices have the following safety devices: power overload, short circuit protection, control circuit overload protection, over temperature protection.
