Description

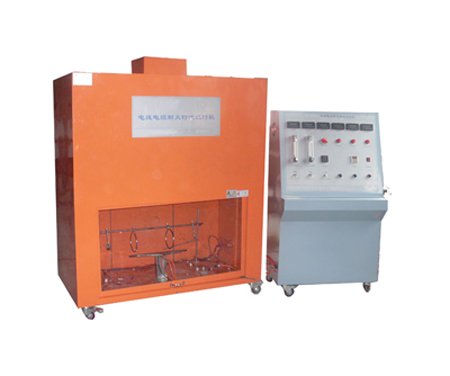

KP8022 wire and cable fire performance test machine
The test machine consistent GB12666.6 and IEC60331 <Test methods - Part 6 wire and cable fire: wire and cable fire performance test method> for testing mineral insulated cables and wires and cables have fire-resistant layer of refractory properties. This instrumentation is designed to test the fire resistance properties of the grid lines and dedicated cable, this cable requires more than conventional buildings more durable fire-resistant cables, in order to ensure the integrity of the circuit under fire conditions.
A combustion chamber:
1.1, Dimensions: W × D × H: 1500 × 550 × 1400mm
1.2, Material: USU304 # stainless steel plate
Second, the burner: a belt-type mixer with venturi burner
Third, the source of fire:
3.1 Fuel: Gas
3.2, the gas flow meter: 1 ~ 10L / min
3.3, air flow meter: 10 ~ 100L / min
3.4, the flame temperature: 750 ~ 800 ?
Fourth, the sample holding means:
By the stent, a metal clamp ring and composition, with two central sample interval of the metal ring support 300mm
Fifth, the temperature measuring device:
5.1, a digital thermometer
5.2, K type temperature sensor
Six Timer: 0 ~ 99.99min can be arbitrarily set
Seven, load:
7.1 Test transformer: three
7.2, the output voltage: 250V
7.3, the output current: 3A
7.4 Output Power: 1100W
