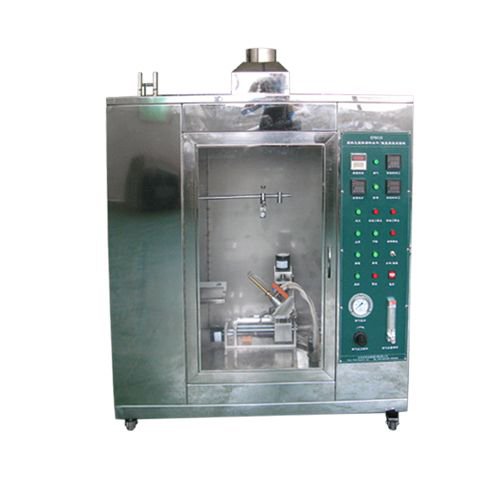

KP8010 plastics and plastic parts vertical and horizontal burning test machine
First, the scope:
Mainly used for plastic or plastic parts in 50W under fire conditions, combustion horizontally or vertically to measure combustion performance plastics and plastic parts. To determine whether the plastic fire resistance rating.
Second, the standard:
GB / 2408, GB13488, ISO1210, UL94 of V-0 V-1 V-2, ASTM D635, D4804,3801, IEC707
Third, the combustion box:
3.1 Case: 0.5m3, the use of CNC machining, nice shape arc quality stainless material / paint, with a beautiful rust and corrosion characteristics.
Top box provided 3.2 exhaust ventilation system when the test is completed, can exhaust emissions to the outdoors; during the test, the system is stopped.
3.3 Case has positive test process can be sealed glass observation window for easy observation test situation.
Fourth, the combustion burner:
4.1 Company homemade torch, in full compliance with IEC 60695-11-4: 2004 Fire A, B or C requirements.
4.2 crater diameter: ?0.95 ± 0.3mm, spray steam outlet: ?0.9 ± 0.03mm, the spout is 100 ± 10mm from the air inlet height
4.3 torch angle: 90 degrees horizontal, vertical 45 degrees
4.4 Flame height: 20 ± 20.
Fifth, the temperature measurement system:
5.1 Thermal sensor (copper pipe and thermocouple) - conduit structure should be high conductivity copper. A length of 8.8 ± 0.02mm, diameter: ?5.5 ± 0.01mm
5.2 K type thermocouple with 0.5mm diameter stainless steel tube make coat.
Intelligent PID temperature controller and K-type thermocouple match. The reading can be as large 1000 ?.
5.3 over the whole test system: movable, when the temperature will be placed in the test chamber, temperature measurement.
5.4 equipped with electronic stopwatch: accurate to 0.1S (when the standby temperature calibration)
6, the main fixture:
6.1 Test stand: made of stainless steel, sub-horizontal and vertical bracket bracket, vertical bracket and burner observation window and the plane parallel to the plane, easy to observe and operate.
6.2 Wedge frame: wedge increases, as required burner mounted on a wedge, and can be easily moved, and moved back to a predetermined position accurately.
6.3 can be measured with the inner horizontal and vertical burning Waiyan ruler set.
6.4 Equipment 500MM 1MM accurate to a stainless steel ruler, to prepare for a test.
6.5 Standard sample size: length 125mm, width 13mm, 3 <thickness <13 mm (or in accordance with test standards)
