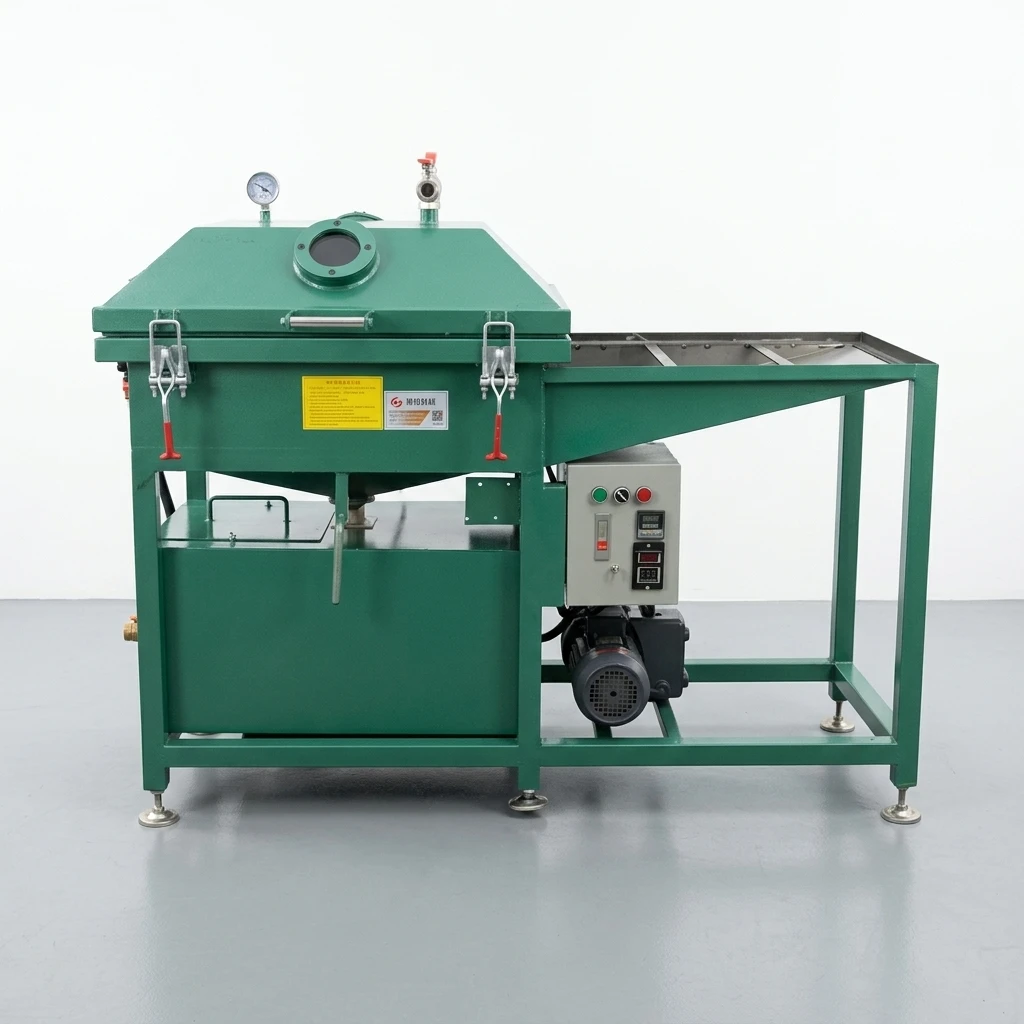

Industrial Manual Vacuum Impregnation Machine for Motor Stator Transformer Coil Insulation Impregnation Process

The main functions of the manual single-cylinder vacuum impregnation machine are as follows:

1. Place the object to be impregnated into the cylinder, close the cylinder cover, and lock it with the cylinder cover locking device.
2. Create a vacuum and maintain the pressure for a period of time; force the liquid from the storage tank into the cylinder under atmospheric pressure. After the liquid reaches a certain height, close the inlet pipe. 3. (Continue) Vacuuming: Maintain pressure after reaching a certain negative pressure.
4. Equilibrium (Inhalation): Open the inhalation (exhalation) port. Air will naturally enter the cylinder under atmospheric pressure, making the pressure inside the cylinder equal to the pressure outside the cylinder.
5. Exhaust (Ventilation): Open the inhalation (inhalation) and exhalation ports to expel the air from the cylinder. The pressure will reach equality with the outside pressure.
6. Drainage: Displace all the liquid from the cylinder. At this time, close the drain port (maintain pressure inside the cylinder).
7. Exhaust again: Equilibrium the pressure inside and outside the cylinder, removing excess liquid from the impregnated object.
8. Drainage: Remove the object.
Vacuum Impregnation Machine – Frequently Asked Questions (FAQ)

Q1. What materials can be impregnated?
Our vacuum impregnation machine is suitable for metal castings such as aluminum, iron, steel, magnesium alloy, zinc alloy, powder metallurgy parts, and other porous components.

Q2. What defects can the machine solve?
It effectively seals micro-porosity, pinholes, leakage paths, and casting defects, improving pressure resistance and product reliability.

Q3. Which industries use this machine?
It is widely used in the automotive, aerospace, electronics, hydraulic, pneumatic, refrigeration, medical equipment, and precision manufacturing industries.

Q4. What impregnation resin can be used?
The machine is compatible with most anaerobic impregnation resins and other industrial sealing resins. We can also recommend suitable resin brands according to your application.

Q5. Is the machine automatic?
Yes. We offer fully automatic, semi-automatic, and customized systems according to your production capacity and process requirements.

Q6. Can the machine be customized?
Yes. Tank size, loading capacity, automation level, PLC control system, voltage, and workflow can all be customized.

Q7. What voltage is available?
Common voltages include 220V, 380V, and other customized power specifications for different countries.

Q8. How can I choose the right model?
Please provide the following information,Product material,Product dimensions,Leakage requirements,Daily production capacity,Photos or drawings of the workpiece.Our engineers will recommend the most suitable solution for your application.

Q9. What is the production capacity?
The capacity depends on the workpiece size and process cycle. We can design the most suitable model based on your production requirements.

Q10. Do you provide installation and training?
Yes. We provide installation guidance, operation training, maintenance support, and online technical assistance.

Q11. What warranty do you provide?
The standard warranty is 12 months after installation or shipment, excluding consumable parts. Lifetime technical support is available.

Q12. How long is the delivery time?
Normally, production takes about 15–30 days depending on the machine configuration and customization requirements.
