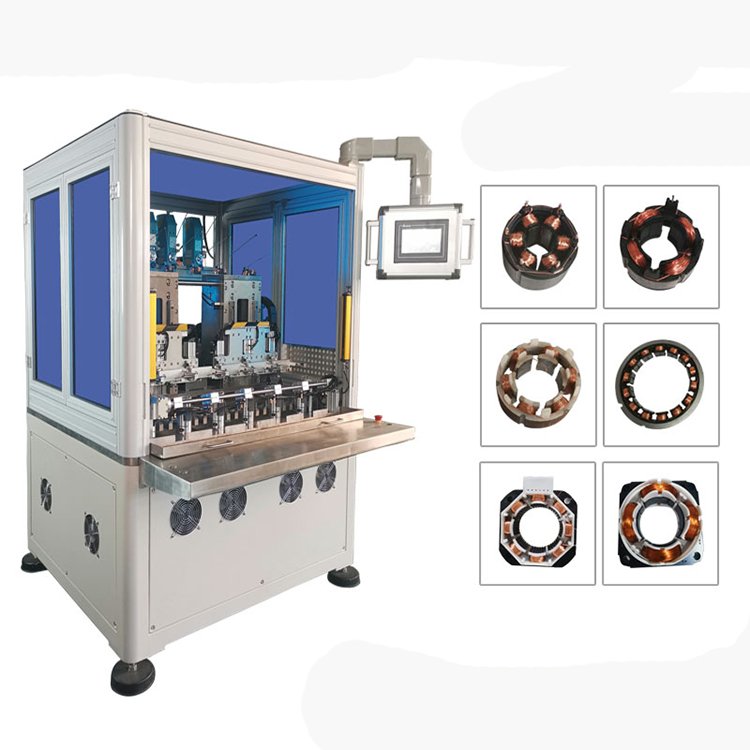

HY-DZ600 Hair dryer brushless motor fully automatic high-speed winding machine (six stations)

Parameters:
Model: HY-DZ600
Spindle spacing: 200mm
Applicable winding diameter: Φ0.08-Φ1.0mm (change the wire rack according to the wire diameter)
Number of workstations: 6 workstations
Number of slots: 4-36 slots
Stator outer diameter: Φ20-120mm (customizable if out of range)
Stator inner diameter: Φ12-80mm
Stator thickness: Φ5-80mm (customizable if out of range)
Transmission servo: 5000W set
Transfer servo: 3000W six sets
Wire arrangement servo: 750W two sets
Air pressure: 6kg/cm²
Power supply: 3-phase 380V 50 20A
Dimensions: about 1400W*1330L*1670H
Machine power: about 8-9kw
Speed: 0-1000r/min (depending on actual wire diameter and stator size)
Controller: Touch motion controller

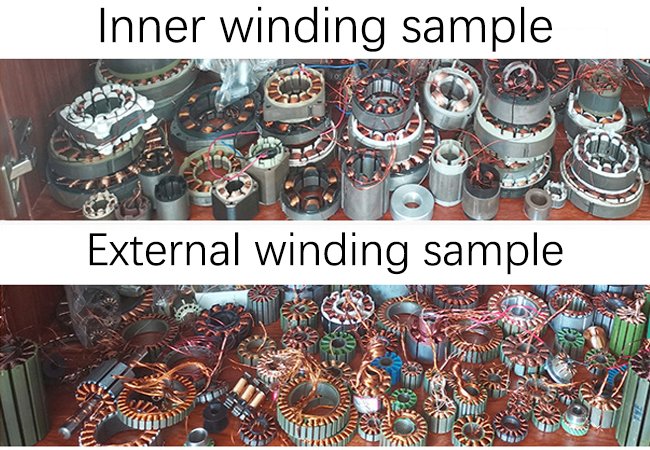

Application range:
High-speed hair dryer motor, rotary transformer, sensor motor, servo motor, stepper motor, water pump motor, fan motor, etc.,

applicable but not limited to the above brushless motor winding operations.

Product features:

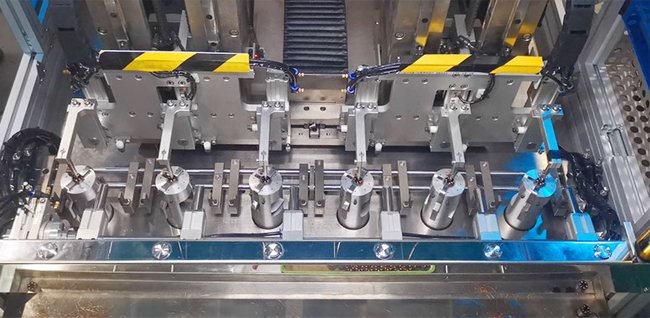

◆ Winding 6 stators at high speed at the same time, the winding speed can reach 1000r/min
◆ Precision wiring while winding at high speed, 4-36 slots can be changed infinitely
◆ The number of turns can be more than 500
◆ The equipment chassis adopts 8mm square tube welding process to ensure high-speed operation and stability
