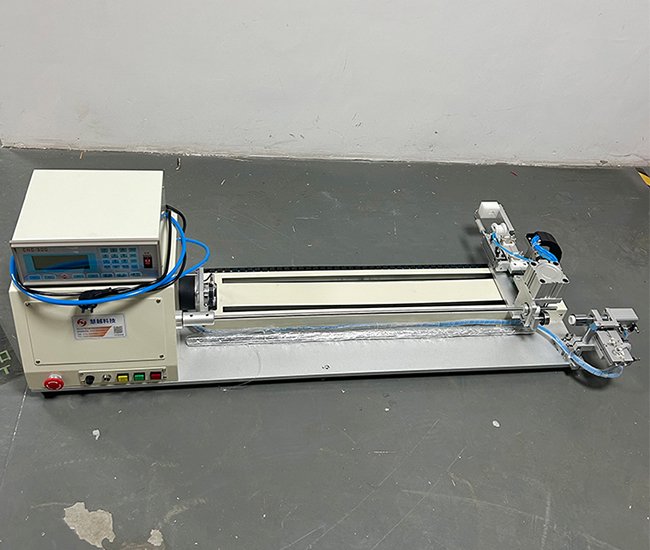

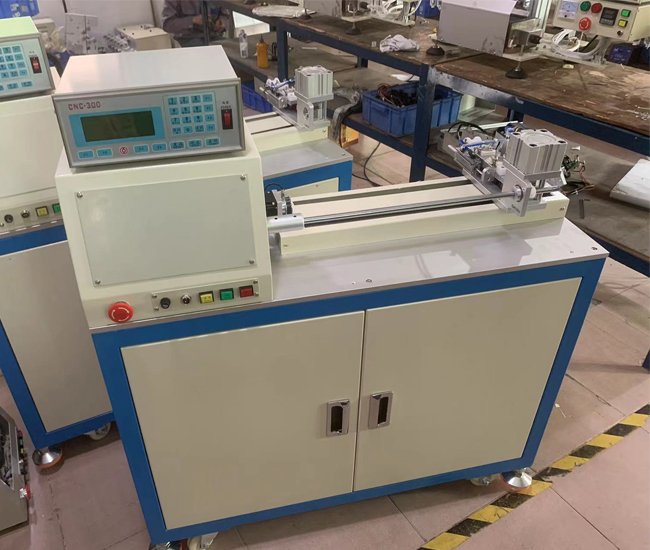

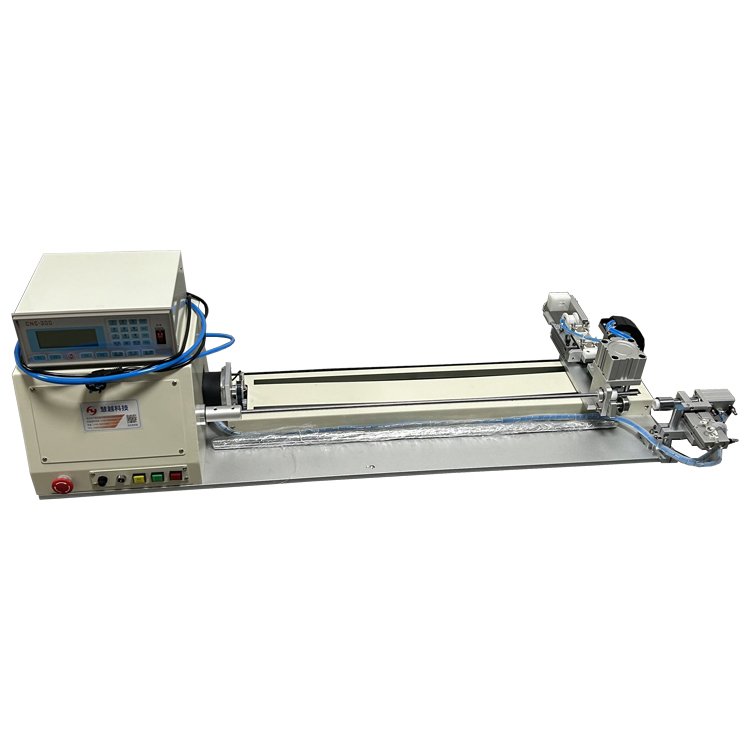

Vertical fully automatic spring winding machine HYR12 desktop spring machine
1. CNC intelligent operating system screen making, intuitive and convenient for viewing and operation.
2.
The wire feeding mechanism is made of rust proof material, and the
winding diameter can be adjusted according to needs, with good accuracy.
3. The winding and tying of wires are driven by stepper motors and dual motors to accelerate work efficiency.
4.
The tangent position mechanism adopts imported steel materials and
automatically ties and twists wires for tangent cutting; Durable and
long-lasting.
5. The equipment is versatile and can automatically
wind, tie, and twist wires; Set the number of coils and the length of
the tie wire arbitrarily.
Adopting CNC microcomputer controller, the data is easy to set; Equipped with a foot pedal, easy to operate.
The cable shaft adopts a stepper motor driven by a constant current circuit, with fast cable laying speed and high accuracy.
The starting point, width, and wire diameter can all be adjusted.
Can store 999 sets of sequential data and permanently store memory.
Optional models: 500mm stroke, 800mm stroke, 1000mm stroke
Machine Function Introduction:
The
automatic spring winding machine is mainly used for winding spring
shaped wires, heating wires, nickel chromium alloy wires, copper wires,
and so on; Suitable for winding inductance coils, enameled aluminum
wires, soldering wires, wires and cables, spinning threads, etc. for
electronic and electrical products
Mainly used in conjunction with a
magnetic ring needle hook machine, it is wound into a spring shape, and
the magnetic ring hook thread is easy and fast to thread; High winding
efficiency
model：HY-R12
| Applicable diameter | 0.3-2.5 mm |
| Spindle motor | DC brushless 600W |
| Number of spools | 1 |
| Spring inner diameter range | 6-15mm (customizable) |
| Cable stroke | 0-500mm |
| Pressure range | 0.4-0.6Mpa |
| Maximum winding diameter | 150mm |
| Machine speed | 0-2000RPM |
| Machine Size (mm) | L1500 * W650 * H500 |
| Machine weight | 45kg |
