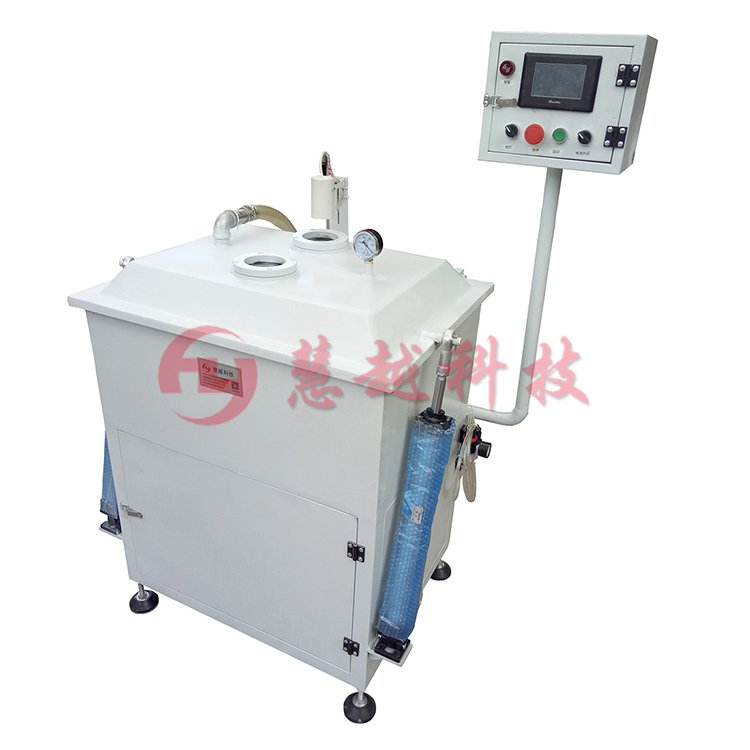

Small vacuum impregnation machine, single cylinder vacuum pressure impregnation equipment
1. Adopt stepper motor to drive precision ball screw to drive the sub-tank lift-type impregnation, the lifting height can be preset; the lifting height can be preset (the maximum stroke of the sub-tank is 80mm; the displacement accuracy is ±0.05mm)
2. The screw elevator has a large bearing capacity and high control accuracy. The PIN will not stick to varnish water, and there is no need for secondary tin plating.
3. Controlled by PLC controller, various impregnation modes can be preset, and it has the function of eliminating bubbles in a timely manner;
4. Automatic opening and closing of the box cover, secondary automatic vacuuming, saving time and effort, environmental protection, energy saving, and can realize single-person multi-machine operation.
5. The whole tank is made of 10MM steel plate. Double glass viewing windows for viewing immersion at any time
6. Immersion time can be set;
7. With timing alarm, motor overload protection and phase loss protection functions;
8. Exhaust filtration and recycling, with dual-effect functions of environmental protection and recycling;

9. Full Chinese PLC controller control, intelligent vacuuming, no bubbles varnish water, beautiful impregnation effect.
