HUIYUE (DongGuan City) Automation Equipment Co., Ltd.

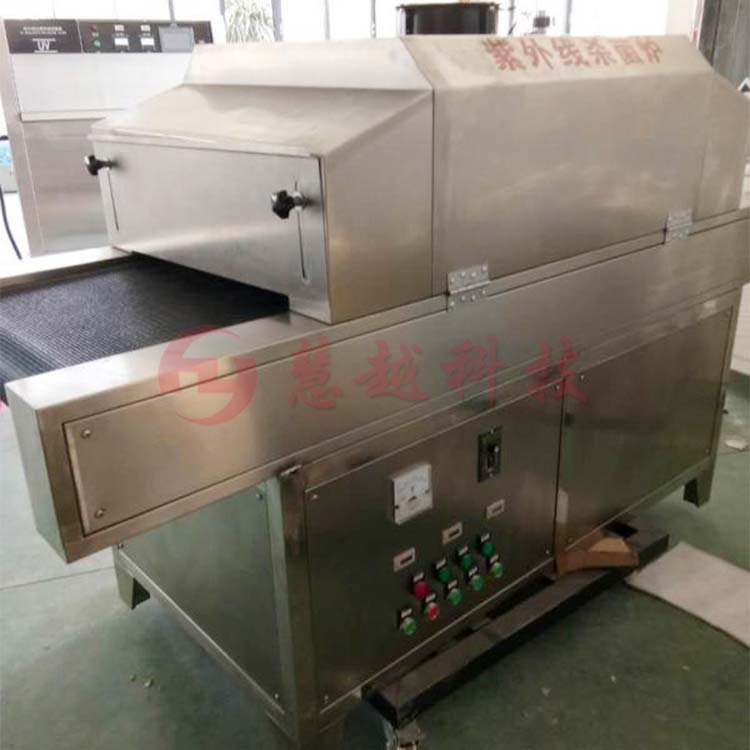

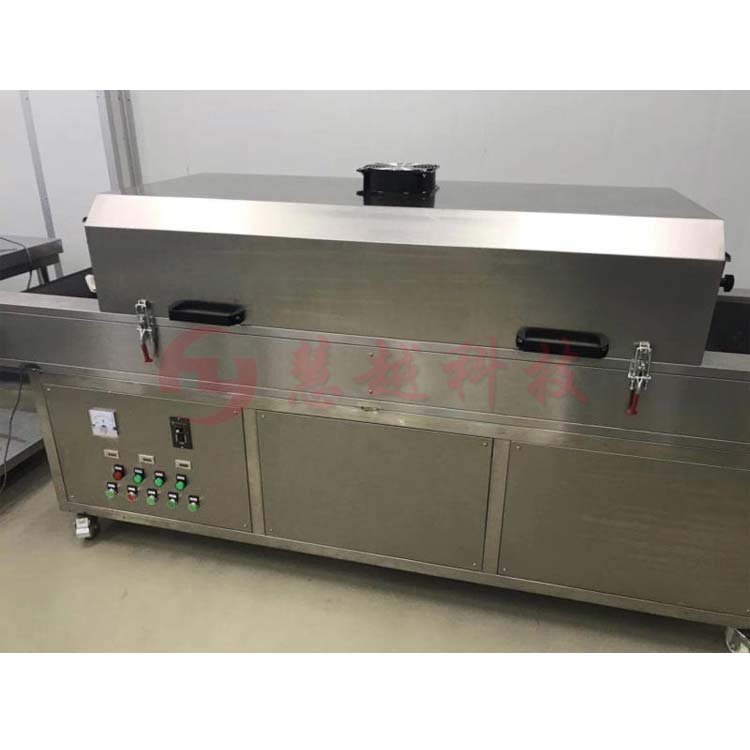

HY-K09 UV protective mask sterilization furnace
| Sterilizer full length | 2000mm | |
| UV working area | 1200mm |
|
| Feeding area | 400mm | |
Discharge area |
400mm | |
|
200mm ?Adjustable? |
|
| Entrance width | 500mm | |
| conveyor | Teflon mesh belt, uniform speed adjustable 0-5 meters / minute |
|
| Conveyor distance from the ground | 750±50mm |
|
| Inside and outside materials | High quality stainless steel, corrosion resistant and easy to clean. Four brake-type movable casters at the bottom for easy movement |
|
| Voltage power supply | 220V, 2KW |
It is evenly distributed in the furnace, 5 on the top, 3 on the left, and 3 on the left and right, with UV reflectors (inner box mirror stainless steel plate),
which greatly improves the use of ultraviolet light up to 90%.
Each group of germicidal lamps can be controlled individually, and an adjustment device that can adjust the angle of the UV tube is added.
An automatic timer is installed to monitor the use time of the tube at any time.
Convenient for lamp replacement.2. The inlet and outlet of the sterilization area has a light-shielding area, equipped with a hood and an adjustable baffle.
Brushed stainless steel surface (not ordinary fuel injection);
3. Transmission part: Transmission part: Taiwan Yongkun 120W stepless speed regulation motor is used to adjust the speed.Several degrees digital display ,. There is a carriage in the middle. Adjustable active and passive rollers are provided on the front and back,
which is conducive to the mesh belt is not easy to scratch the mesh belt while running.
(1) Outer body of working area tunnel: 1.2mm high quality stainless steel set Model: A3
(2) Working chamber tunnel cavity: 1.0mm mirror stainless steel plate Model: # 212
(3) Airframe support frame: One set of Fangtong Steel Model: 2 ? Fangtong
(4) Air transport system: a set of forced air transport combined exhaust fans
(5) Thermal insulation material: Vacuum aluminum silicate + silk cotton double layer Model: 60K
(6) Conveyor belt: Teflon mesh belt
(7) Balance device: Flat water foot cup Model: 50 * 12 * 100mm
HY-K09 UV sterilization furnace electrical parts
(8) Total switch: 15A (9) Total power: 2KW
(10) Inorganic speed regulation range of mesh belt: 0-5m / min (11) Transport motor: 800W
(12) Governor: 500W (13) Exhaust fan: CY-125
(14) Ammeter: 50A set (15) Working voltage: 220V ± 5%
protective device
1.Over-voltage and over-current protection 2.Fault alarm prompt 3.Equipment overload protectionCan be used to sterilize air and objects.
Widely used in food, protective masks, disposable gloves, bottles, hospitals, food,
Tea food and beverage processing and packaging equipment, food factories, cosmetics factories, bakeries and refrigerators,
etc. And can extend product shelf life, etc.
Sterilization parameters: Ultraviolet irradiation sterilization method can sterilize food,
which can effectively kill microwave organisms (such as E. coli, mold).
Or make the total number of bacteria drop to increase food sterilization.
