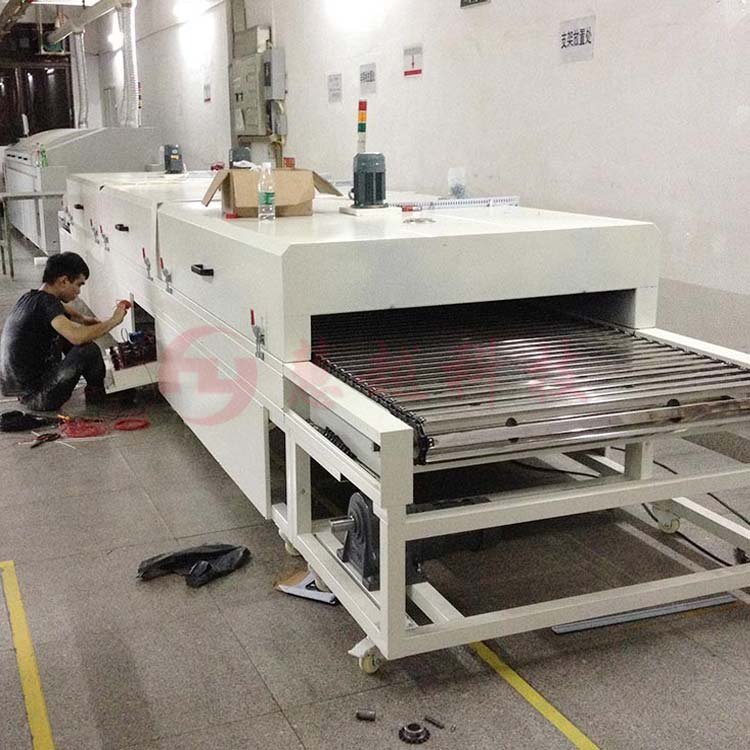

HY-K02 Circuit board tunnel drying oven, industrial oven
Infrared
lamp: the surface of vacuum gold-plated infrared enhancement film, the
length can be set according to customer requirements. Continuous working
life of 6000 hours or more.
1.
Baked products both inside and outside the heat, internal and external
temperature difference is small, no distortion, no color, quality and
stability;
2.

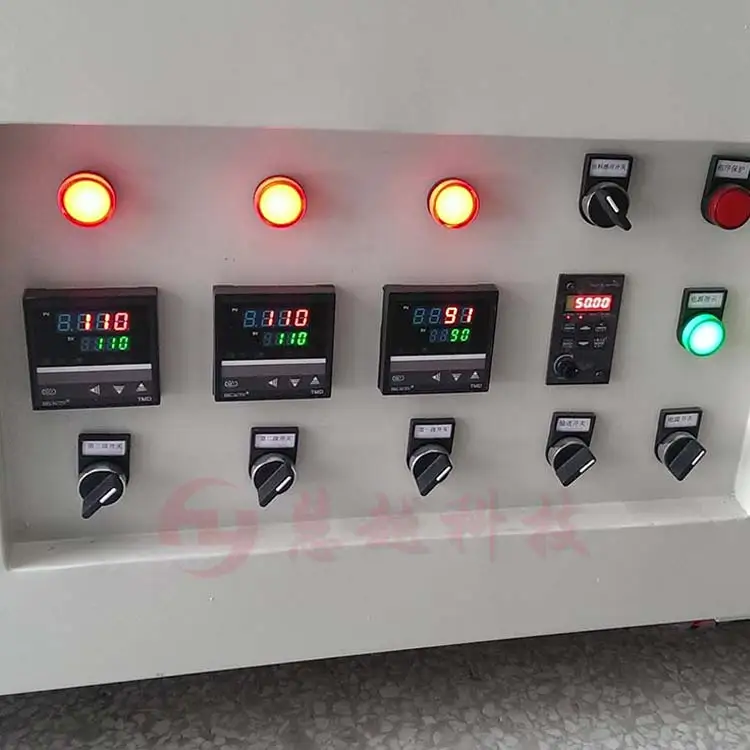

Automatic temperature control, baking fast and efficient, can save time
about 2-6 times, greatly reducing the production shipping cycle;
3. Local heating, less energy waste, saving more than 30%;
4. Due to the large amount of energy transmission per unit area, small size, provincial space, provincial construction costs;
5. Can be used with the production line connection, synchronization control, reduce the bad;
6.62,42 GB hot line; temperature can be segmented control to meet product demand, high flexibility;
7.
Unique built-in fan design forced ventilation device, less solvent
residue without danger, explosion-proof environmental protection, safe
and reliable.
8. Case exterior temperature close to the ambient temperature, clean and tidy workroom environment, reducing energy waste;
HY-K02 Circuit board tunnel drying oven, industrial oven
| Overall dimensions | L6000mm * W900mm * H1250mm |
| Baking area size | L4800mm * W700mm * H150mm |
| Material Placement Area | Before 600mm, after 600mm, release area and discharge area installation of stainless steel plate |
| Entrance exit installation height adjustment board | adjustment range is 30-100mm |
| In and out of the mouth surface | SUS201 = 1.5mm protection board |
| The number of body parts | 2 sections. Divided into three roasted area, the first 250MM low temperature zone, the latter two constant temperature zone |
| Furnace wall | 1.2mm SUS201 stainless steel, each infrared lamp with stainless steel reflector |
| Power | 1 / 2P Taiwan TECO inverter and 1 / 2P motor |
| Transmission speed | 0.2 ~ 3m / min (frequency adjustment) |
| Reducer | a set of 1200: 1 reducer, speed control mode: frequency control, precise speed control. |
| Transport carrier | delivery bandwidth 700mm using 30 * 15 stainless steel flat pass, spacing 46mm. 6 points on both sides of double-pitch high-carbon steel chain |
HY-K02 Circuit board tunnel drying oven, industrial oven
Wooden packing
24 hour online technical support and 100% quality warranty for 12 months except consumable parts.
