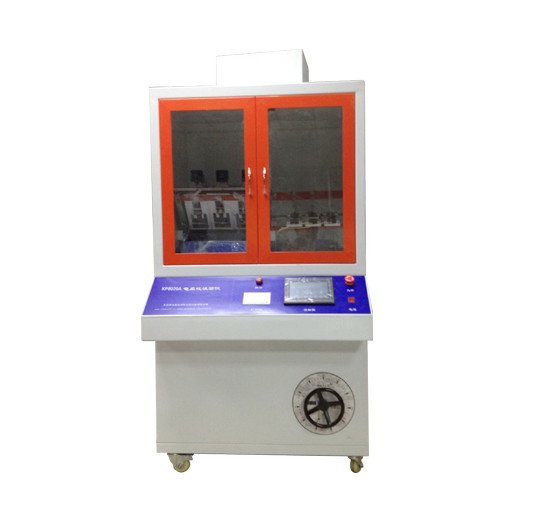

KP8020A tracking of the wire and cable tester (Wire and Cable Tracking tester)
One. Product Overview
This equipment is used to detect wire and cable resistance to tracking ability to simulate the actual environment of a vertically placed sample at a constant speed and flow rate of 0.1% sodium chloride solution spray while applying a high voltage, sample current during this period if no more than 1A, the sample is not burning, no continuous arcing between the electrode and ground samples no breakdown sample is considered qualified. Suitable for single-core cables, multi-core cable can also be used to detect. External devices made of stainless steel, corrosion-resistant and insulation inside the sealed epoxy board, effectively prevent leakage and contamination of liquid metal corrosion.
Second, the scope
This device is suitable for wire and cable tolerated under filthy conditions due to surface leakage caused by electrical traces and damage abilities.
Third, in line with standard GB / T 3048.1-2007, GB / T 3048.7-2007
The equipment complies with standard GB / T 3048.1-2007 "electrical wire and cable performance test method", GB / T 3048.7-2007 "electrical wire and cable performance test methods: Part 7: Tracking resistance test" requirement.
Fourth, the technical parameters
Equipment consists of: means for regulating device and liquid sewage collection device power control section, spray device, the occurrence of high voltage components.
1, the test voltage: 0 ~ 5000V adjustable
2, the test current: 2A
3, Alarm current: 1 A
4, voltage regulator: 10KVA output 0 ~ 250V
5, the high-voltage transformer: 10KVA Output 0 ~ 5000V
6, electrode holders: all-copper production
7, the sample frame insulation: high insulation Teflon production
8, the liquid spray device: 1.2 m spray process, the spray velocity 3m / s, the amount of spray 0.5mm / min
9, overcurrent detection device: high sensitivity circuit breaker, when the loop current exceeds a set value automatically when the power is turned off and the alarm signal output
10, the control system: Siemens PLC + touch screen Wei Lun precise control, spray precise timing accuracy, simple operation, automatic data recording, and the recording operation without thinking.
11, leakage protection device: The device is equipped with a high sensitivity leakage detection device, immediately turn off the power and alarm in case of leakage or over-current, effectively protect the personal safety of the operator and equipment reliability.
12, internal processing: internal corrosion-resistant epoxy insulation board and sealed, with insulation and corrosion protection
13, the device size: L1300mm * W800mm * H1700mm
14, the use of power: 220V 50 / 60Hz
15, Weight: 120kg
