Yan Ling Electric Co., Ltd. Mr. Xia sa huli Septiyembre 2015 Division inorder ko isang ganap na awtomatikong silindro vacuum pagpapabinhi machine, sa Oktubre 12 pormal na matagumpay na inihatid Yan Ling Electric Co., Ltd. produksyon at paggamit, ang mas maraming ang aming intelligent automation HY- Z03 silindro vacuum pagpapabinhi machine HY-Z03 silindro vacuum pagpapabinhi machine ay angkop para sa mataas na dalas, mababang dalas transformer, inductors, motors, inductors, rectifiers, circuit boards, metal paghahagis at paglubog processing equipment C-type core, na Narito kami tumingin sa Yan Ling Electric proseso unlad:



Yan Ling Electric Co., Ltd ay matatagpuan sa Zhejiang Province, "China mababang boltahe electrical appliances," Liu City, Zhejiang Province, ay isang pananaliksik, pag-unlad, produksyon, at mga benta ng non-regional negosyo joint-stock.

       Company Industrial Park ay sumasaklaw sa isang lugar ng 63,500 metro kuwadrado, pagbuo lugar ng 72,800 metro kuwadrado, ay may isang bilang ng pinagsamang ventures at may hawak na mga kumpanya, 's "Yan Ling", "Yan Tai", "GKG" at iba pang acclaimed tatak sa industriya, kabilang ang "Yan Ling "trademark ay panghukuman nakilala bilang" China sikat trademark ", ang relay produkto ay pinangalanang" pambansang Mianjian mga produkto. " kalidad na sistema ng kumpanya ay naging sa mga internasyonal na pamantayan, ang pumasa ISO9001 sa parehong industriya at negosyo: 2000 internasyonal na kalidad na sistema ng pamamahala ng sertipikasyon at sa Netherlands RVA, ang mga produkto ay may CE, 3C, ul, TUV at iba pang international certification.

Sa pag-unlad ng lipunan, kami ay higit pa pagsisikap upang magbigay ng mga customer na may maaasahang, matatag produkto at isang buong hanay ng mga propesyonal na mga serbisyo. Ang aming layunin ay: upang maging ang tiwala ng mga gumagamit, na may isang high-tech enterprise-class R & D kakayahan, at upang panatilihing buhay praktiko pagbabago, masigasig entrepreneurial espiritu, upang lumikha ng isang siglo Yan Ling at gumawa ng walang humpay pagsisikap!



       Yan Ling Electric Zhejiang ay may higit sa 50 saksakan tindahan, higit sa lahat na gawin sa mga produkto relay, paggamit ng mga kasangkapan, motor protectors, circuit breakers, soft starters at iba pang mga produkto, pagkatapos ng taon ng pagpapatakbo, Yan Ling sa mga lungsod na may serbisyo centers at Logistics centers bilang ang katigasan ng loob ng mga benta ng serbisyo ng sistema ay ipinapakita mahusay na suporta sa higit sa 280 lungsod sa buong bansa benta at serbisyo ng network upang matugunan ang mga magkakaibang mga pangangailangan ng mga customer. Yan Ling Electric ngayon dagdagan awtomatikong vacuum pagpapabinhi machine, maaaring lubos na mapabuti ang kahusayan ng produksyon, ngunit din ay maaaring lubos na mapabuti ang aesthetic epekto ng ang produkto, kaya na Yan Ling Electric homegrown mataas na dalas transpormer walang bakas ng barnis, at pagkatapos ay dumating ako sa mga sumusunod na Tingnan Yan Ling Electric mga larawan ng produkto at video ng trabaho:





undefined

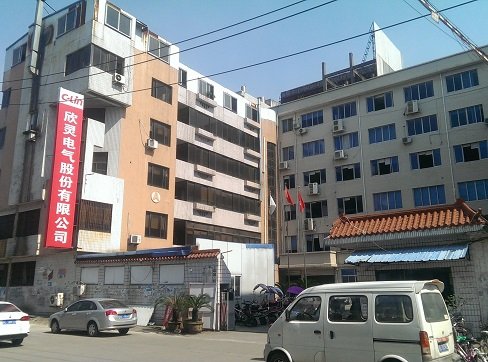

Zhejiang Yan Ling electrical outlets

Yan Ling electrical production site

Yanling electrical production site 2

Yanling electrical production site 3

Yan Ling electrical products

That we take a look at our HY-Z03 double-cylinder automatic vacuum impregnation machine technical parameters and details of high-definition picture:

HY-Z03 double-cylinder automatic vacuum impregnation machine size size

The cylinder volume: L710 * W540 * H300mm

Subdisk size: L660 * W530 * H105mm

Single cylinder size: L950 * W660 * H1160mm

Controller dimensions: L500 * W540 * H1300mm

Baptist machine: about 2600x wide and 660x high 1300mm (about 450KG)

Standard impregnation machine height: about 80mm (can be customized according to customer requirements height)

Basic equipment requirements

1, the input: AC 380V 3-phase 4-wire 50Hz;
2, power: 1HP;
3, the use of Yade passenger cylinder fast switch cover. Cover with silicone rubber seal around, fast seal;
4, the use of stepper motor drive precision ball screw drive sub-tank lift-type impregnation, can be preset height; can be preset height (sub-groove maximum stroke 60mm; displacement accuracy ± 0.05mm);
5 ,. Spiral lift bearing force, high control accuracy, PIN will not stick to the water legislation, not the second tin;
6, the whole Chinese PLC control, can be preset a variety of impregnation mode, intelligent vacuum, to no bubble where the water, impregnation effect beautiful;
7, automatic switch cover, the second automatic vacuum, saving time and effort, environmental protection, energy saving, single-person multi-machine operation can be achieved;
8, the overall use of 10MM steel plate production. Double-glass observation window can always view the soaking situation;

Function Description

1, impregnation time can be set;
2, with a timer alarm, motor overload protection and phase protection;
3, exhaust filter recovery, with environmental protection, recycling double-effect function;
4, the product storage of 500;

Body materials and electrical materials

1, the main part of the A3 material, the surface spray green Chouwen paint (bright white and dark gray can choose);
2, some accessories using cold rolling plate;
3, all electrical appliances used Chint brand;
4, all Chinese PLC controller operation, the controller parameter settings, click: vacuum impregnation machine PLC controller parameter setting screen;

HY-Z03 double-cylinder automatic vacuum impregnation machine

Air filter: Remove the liquid water, liquid oil, compressed air will be filtered through the filter to remove those tiny solid particles

15-pin connector: make the circuit connection more convenient (respectively, power switch, driver, stepper motor, control sensor)

Double glass observation window: 10 mm thickness of tempered glass (with sealing ring)

Stainless steel pressure gauge: for corrosive gas environment, can detect strong corrosive medium pressure or vacuum (range 0.01 to 0.1MPa)

Environmentally friendly low-power bulbs: bulb long life, low standby power, energy saving

Bulb connection: three-port connection, easy to connect

Zhengtai brand relays: Zhejiang Zhengtai Electric, China's first low-voltage electrical industry-based A-share listed companies (big brands trustworthy)

Baptist controller: All Chinese PLC control, can be preset a variety of impregnation mode, intelligent vacuum, to achieve a bubble-free water, impregnated with beautiful effect
