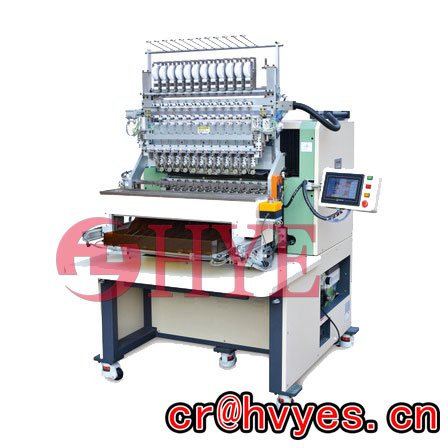

12-axis HY-R18 transformer winding machine performance characteristics

Performance characteristics:
1.Teach interactive touch, human interface, easy to control, Chinese culture program management, easy to learn and understand, five minutes to get started, no keyboard and external power supply, direct input, short tuning time
2. Self-diagnosis function, quick maintenance
3. Four-axis NC tween, spirally wrapped
4.CNC server driver, precise positioning
5. Quick-change shaft core fixture
6. Four angles wrapped around the PIN foot function
7. High speed and high precision to improve the quality and quality of winding
8. Can be operated stand-alone or with automated production

9. Can be used with automatic exchange materials, scissors and pneumatic twisting equipment (special equipment)

Spindle number           8 / 12 / 16
Spindle speed     (rpm)    10000 / 12000 / 12000
Spindle pitch     (mm)    45-100 / 45-70 /  35
Spindle servo motor power  (W)    1500/3000 (Optional?
Traverse motor power    (W)    X:200, Y:200, Z:400
Spindle diameter     (mm)    standard?10     particular?12
Wire range        (mm)    0.02-0.4mm ?Additional air pressure scissors and replacement motor Can be wound more than 0.4mm?
Max.wire diameter     (mm)    60/90; 35/60;
Traverse moving range   (mm)    X:110, Y:150, Z:70
Traverse speed      (mm/sec)    200
Power voltage       (V)    Single item 220V  50/60HZ
Power voltage       (W)    3000W/4500W
Air pressure       (Mpa)    0.45-0.55
Machine size       (mm)    1300(L)x1000(W)x1400(H)
Machine weight      (kg)    600 / 640 / 700
