Our company specializes in the production of dip coating equipment, single cylinder, double cylinder, automatic, manual and so on. According to the production requirements, strictly follow the following requirements

Automatic Dipping Machine - Basic Equipment Requirements
1. Input: AC 380V 3-phase 4 line 50Hz
2, power: 1HP
3. Support the top cover with 50KG hydraulic rod. The top cover is sealed with silicone rubber and the cover is quickly clamped.
4. Adopting stepper motor drive precision ball screw with moving slot lifting type impregnation, preset lifting height (maximum stroke of sub-slot 60mm; displacement accuracy ±0.05mm)
5. The screw jack has high bearing capacity and high control precision. The PIN will not stick to the varnish, and there is no need for secondary tin plating.

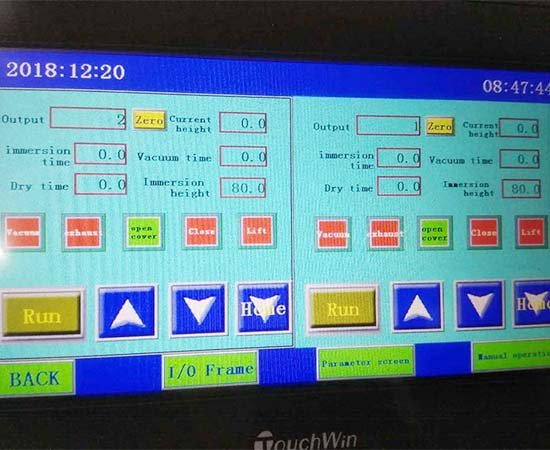

6, PLC controller control, can be preset a variety of impregnation mode, with timely, appropriate elimination of bubble function;
7, automatic switch box cover, secondary automatic vacuum, save time and effort, environmental protection, energy saving, can achieve single-person multi-machine operation.
8. The whole groove is made of 10MM steel plate. Double glass observation window for viewing immersion at any time

Automatic Dipping Machine - Function Description
 1. The impregnation time can be set;
2. With timing alarm, motor overload protection and phase loss protection;
3. Exhaust filtration and recycling, with environmental protection and recycling double-effect function;
4, product storage up to 500;
5, all Chinese PLC control, intelligent vacuum, to achieve no bubble ???, impregnation effect is beautiful.
