HUIYUE (DongGuan City) Automation Equipment Co., Ltd.Full Chinese PLC controller operation. Impregnation machine cover made of 12mm high-quality steel, cylinder made of 10mm high-quality steel. The overall use of 10MM steel plate production. Double glass viewing window can check the immersion situation at any time. Automatic switch cover, the second automatic vacuum, saving time and energy saving, environmental protection, energy saving, single-person multi-machine operation can be achieved. Vacuum impregnation machine is a gas extraction equipment, mainly used in high / low frequency transformers, inductors windings, inductors, rectifiers, motors, metal castings and C-type iron core products such as impregnation treatment. Free to set the impregnation time, simple operation, easy to use. Impregnation machine cover with searchlight, lens can be perspective.

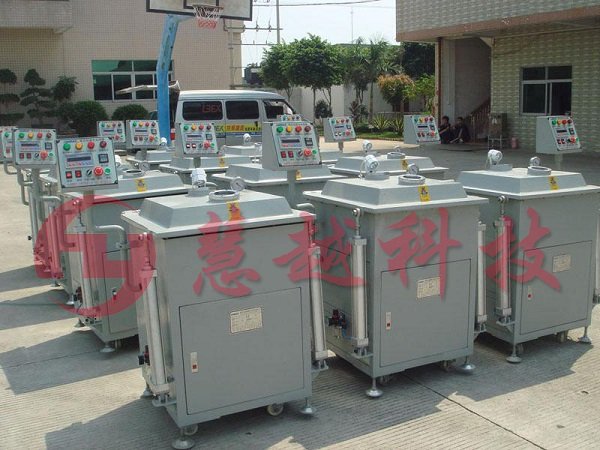

Transformer electronic equipment PLC single cylinder automatic vacuum impregnation machine. Vacuum impregnation machine equipment components: vacuum pumps, vacuum buffer, dipping tank, storage tank (dipping tank) and electrical control part of the combination. Stepper motor drive precision ball screw driven sub-slot lift immersion, can be preset height (sub slot maximum stroke 60mm; displacement accuracy ± 0.05mm). Exhaust filter recovery, with environmental protection, recycling double-effect function; PLC controller control, presetting a variety of impregnation mode, with timely, appropriate bubble elimination function; with timing alarm, motor overload protection and lack of phase protection; Cold rolled plate. Due to the realization of automatic continuous immersion, strict guarantee of the process parameters, the impregnation quality is relatively stable, using 50KG hydraulic rod support cap. Top cover surrounded by silicone rubber seal, quick clip cover. The main part of the A3 material, suitable for household electrical appliances, micro-motor, sub-horsepower and power tools, automotive motors, small and medium motors, DC motors, welding and other stator winding, all kinds of electrical coils, small transformer coil impregnation Process; spiral lift bearing capacity, high control accuracy, PIN will not stick to the water, do not have secondary tin. Full Chinese PLC control, intelligent vacuum, to reach the bubble-free water legislation, impregnation effect beautiful. Agency material and electrical materials. Product storage up to 500, due to the function of vacuum impregnation equipment, process parameters set a wider range, impregnation time can be set.
