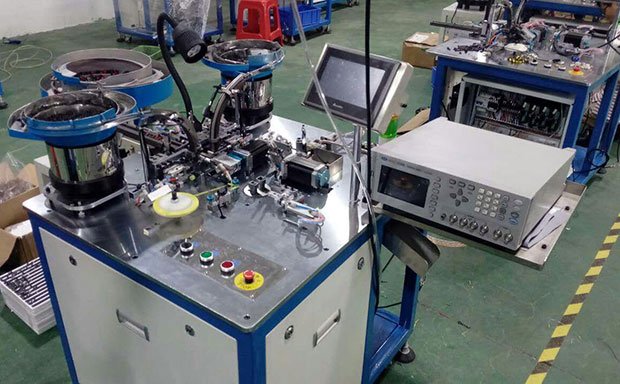

India customer order transformer core automatic feeding assembly machine
Vibrating disk core assembly machine (with detection function) video? 1. https://www.youtube.com/watch?v=Wuu7l6nW-Gg
Vibrating disk core assembly machine (with detection function) video? 2. https://www.youtube.com/watch?v=iKfU3dJfwUU
Vibrating disk core assembly machine (with detection function) video? 3. https://www.youtube.com/watch?v=j_9HUOz3_4c
Magnetic core assembly machine (with detection function) video? 1. https://www.youtube.com/watch?v=w48P86gKAPk
Magnetic core assembly machine (with detection function) video? 2. https://www.youtube.com/watch?v=QzSIcIVzg78
Magnetic core assembly machine (with detection function) video? 3. https://www.youtube.com/watch?v=IO1AciLVTLE
Magnetic core assembly machine (with detection function) video? 4. https://www.youtube.com/watch?v=6wqbVA1Hr1M
Its work flow is: the skeleton of the material ? on the core material ? under the core material ? assembly ? plastic package ? cutting
First in the controller above the core to package the number of laps and the speed of tune, and then put the skeleton into the middle of the vibration plate, the two sides are not the same as the magnetic core into the vibration plate on both sides. Press the start button to complete the entire process automatically.
Scope of application:
High-frequency transformers, small transformers, inductors and other coil products, but also customized according to customer requirements.
Machine function:
1, the vibration plate automatically sorting the material, the magnetic core skeleton positioning assembly, package plastic rotating package way, the skeleton core assembly after the tape machine automatically encapsulated. Turntable positioning accuracy, high precision assembly, the station process: on the bilateral core, double-bit assembly, the core rotation paste tape, cut off the tape, automatic cutting,
2, the output is about 60 / min.
