12-axis transformer winding machine price in Russia

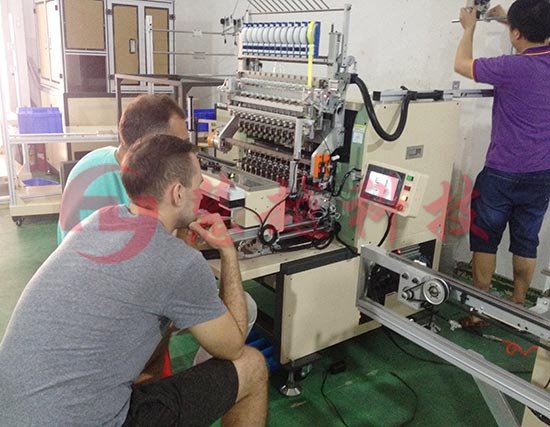

Russian customers come to the factory to learn the twelve-axis winding machine:

1.  https://www.youtube.com/watch?v=IhRJ-d7I_uw

2.  https://www.youtube.com/watch?v=eBVfVxRgNM4

3.  https://www.youtube.com/watch?v=5_i3SZoHkKI



4.  https://www.youtube.com/watch?v=RPEOstLEqJ0

5.  https://www.youtube.com/watch?v=QPK8t2Qsd1k



EE25 transformer twelve-axis winding machine proofing video?     https://www.youtube.com/watch?v=MbaxxPK-ypc

Transformer 12-axis winding machine factory operation video?        https://www.youtube.com/watch?v=uygTmgdWwLc

Eight-axis winding machine factory operation video?       https://www.youtube.com/watch?v=tWBHuCf3lWc
12-axis winding machine proofing test video?        https://www.youtube.com/watch?v=seJZSrY0HS0
Twelve-axis winding machine close-up shooting winding, tape?     https://www.youtube.com/watch?v=Sna6S1YV3-8
Factory real shot multiple 12-axis winding machine operation video?      https://www.youtube.com/watch?v=kNETwPZpGGg
Enameled wire insulated wire 12-axis winding machine operation video?      https://www.youtube.com/watch?v=ba347YiPQ7I
Clock skeleton thin line 12-axis winding machine operation video?    https://www.youtube.com/watch?v=dVhhogqLsBE
Inductor coil twelve-axis winding machine running video?      https://www.youtube.com/watch?v=SbPBBjDT61k

<!----><!----><!----><!---->

HY-R18 Twelve axes automatic winding packaging tape machine

Configuration requirements:

Spindle number	8 / 12 / 16
Spindle speed     (rpm)	10000 / 12000 / 12000
Spindle pitch     (mm)	45-100 / 45-70 /  35
Spindle servo motor power  (W)	1500/3000 (Optional?
Traverse motor power    (W)	X:200, Y:200, Z:400
Spindle diameter     (mm)	standard?10     particular?12
Wire range        (mm)	0.02-0.4mm ?Additional air pressure scissors and replacement motor Can be wound more than 0.4mm?
Max.wire diameter     (mm)	60/90; 35/60;
Traverse moving range   (mm)	X:110, Y:150, Z:70
Traverse speed      (mm/sec)	200
Power voltage       (V)	Single item 220V  50/60HZ
Power voltage       (W)	3000W/4500W
Air pressure       (Mpa)	0.45-0.55
Machine size       (mm)	1300(L)x1000(W)x1400(H)
Machine weight      (kg)	600 / 640 / 700

Performance characteristics:

1.Teach interactive touch, human interface, easy to control, Chinese culture program management, easy to learn and understand, five minutes to get started, no keyboard and external power supply, direct input, short tuning time
2. Self-diagnosis function, quick maintenance
3. Four-axis NC tween, spirally wrapped
4.CNC server driver, precise positioning
5. Quick-change shaft core fixture
6. Four angles wrapped around the PIN foot function
7. High speed and high precision to improve the quality and quality of winding
8. Can be operated stand-alone or with automated production
9. Can be used with automatic exchange materials, scissors and pneumatic twisting equipment (special equipment)
