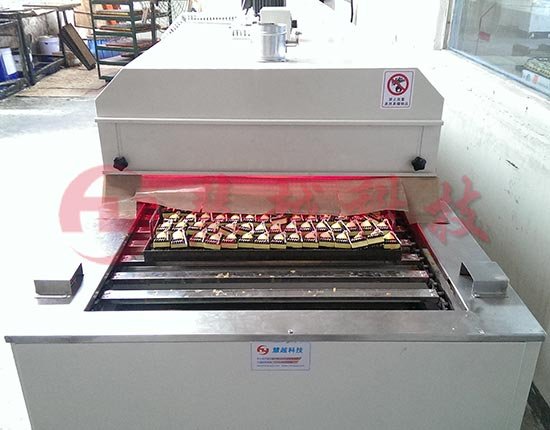

HY-K02 high frequency transformer far infrared tunnel furnace video
Electronic circuit board drying tunnel furnace video? https://www.youtube.com/watch?v=lOc_QZzSqrc
Electronic transformer far infrared drying tunnel furnace video? https://www.youtube.com/watch?v=P1tamayreSE
Dongguan customer factory transformer drying tunnel furnace video? 1. https://www.youtube.com/watch?v=wnBBTZatC5I
Dongguan customer factory transformer drying tunnel furnace video? 2. https://www.youtube.com/watch?v=02i7f2QAfmU
Dongguan customer factory transformer drying tunnel furnace video?3. https://www.youtube.com/watch?v=agpV_03OMWk
Dongguan customer factory transformer drying tunnel furnace video? 4. https://www.youtube.com/watch?v=V4CuBNdYz5Q
<!----><!----><!----><!---->
HY-K02 far infrared tunnel furnace
Configuration requirements:
Optional mode |
Infrared tunnel furnace / UV curing oven |
Dimensions |
L6000W900H1250mm ?Can be customized? |
Baking area size |
L4800mm*W700mm*H150mm ?Can be customized? |
Material placement area |
front 600mm, rear 600mm ?Can be customized? |
Power |
1/2P Taiwan TECO inverter and 1/2P motor |
Conveying speed |
0.2~3m/min (frequency adjustment) |
The number of sections in the body |
2 sections. It is divided into 3 roasting areas, the first 250MM low temperature area, and the last 2 constant temperature areas |
Reducer |
1200:1 reducer set (frequency control, precise speed adjustment) |
Conveying carrier |
conveying width 700mm, 30*15 stainless steel flat pass, 46mm spacing. 6-point double-pitch high carbon steel chain on both sides |
High temperature line |
62, 42 national standard high temperature line |
Performance characteristics:
1. Equipment is used for baking high frequency, low frequency transformer and metal plastic products.
2. The fuselage is made by Fangtong, and the sectional design structure is convenient for disassembly and installation.
3. The bottom of the adjustment caster foot cup is easy to move and position, adjust the height and level.
4. The inner wall of the furnace is 1.2mm SUS201 stainless steel, and each infrared tube is equipped with a stainless steel reflector.
5. Add stainless steel plate to the discharge area and discharge area. A height adjustment plate is installed at the inlet and outlet, and the adjustment range is 30-100mm.The surface of the inlet and outlet ports is protected by SUS201=1.5mm.
6. Infrared lamp: vacuum-gold-plated infrared reinforced film on the outer surface, the length can be set according to customer requirements. Continuous working life of more than 6000 hours.
7. Fully automatic temperature control, saving 2-5 times than traditional vertical oven, saving more than 30%, and high working efficiency.
