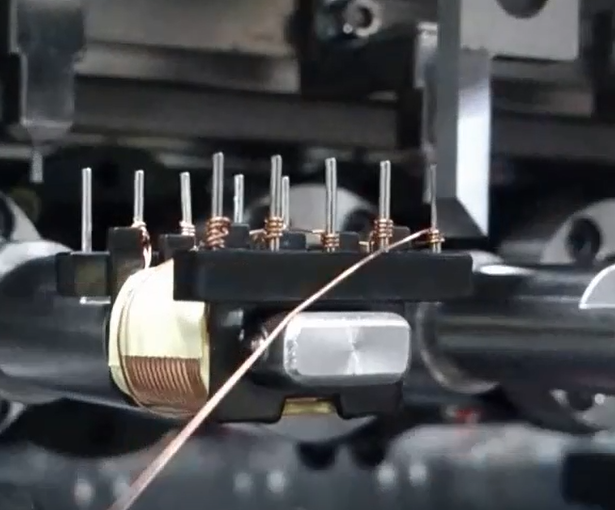

Take a close-up shot of transformer winding machine operation video
EE25 transformer twelve-axis winding machine proofing video? https://www.youtube.com/watch?v=MbaxxPK-ypc
Transformer 12-axis winding machine factory operation video? https://www.youtube.com/watch?v=uygTmgdWwLc
Eight-axis winding machine factory operation video? https://www.youtube.com/watch?v=tWBHuCf3lWc
12-axis winding machine proofing test video? https://www.youtube.com/watch?v=seJZSrY0HS0
Twelve-axis winding machine close-up shooting winding, tape? https://www.youtube.com/watch?v=Sna6S1YV3-8
Factory real shot multiple 12-axis winding machine operation video? https://www.youtube.com/watch?v=kNETwPZpGGg
Enameled wire insulated wire 12-axis winding machine operation video? https://www.youtube.com/watch?v=ba347YiPQ7I
Clock skeleton thin line 12-axis winding machine operation video? https://www.youtube.com/watch?v=dVhhogqLsBE
Inductor coil twelve-axis winding machine running video? https://www.youtube.com/watch?v=SbPBBjDT61k
Russian customers come to the factory to learn the twelve-axis winding machine:
1. https://www.youtube.com/watch?v=IhRJ-d7I_uw
2. https://www.youtube.com/watch?v=eBVfVxRgNM4
3. https://www.youtube.com/watch?v=5_i3SZoHkKI
4. https://www.youtube.com/watch?v=RPEOstLEqJ0
5. https://www.youtube.com/watch?v=QPK8t2Qsd1k
Model |
HY-R18 |
Spindle number |
12 |
Spindle speed (rpm) |
12000 |
Spindle pitch (mm) |
45/70 |
Spindle servo motor power (W) |
1500/3000 (Optional) |
Traverse motor power (W) |
X:200, Y:200, Z:400 |
Spindle diameter (mm) |
standard:10 special:12 |
Wire range (mm) |
0.02-0.4mm |
Max.wire diameter (mm) |
35/60 |
Traverse moving range (mm) |
X:110, Y:150, Z:70 |
Traverse speed (mm/sec) |
200 |
Controller |
JHY-3 |
Power voltage (V) |
220V 50/60HZ |
Power voltage (W) |
3000W/4500W |
Air pressure (Mpa) |
0.45-0.55 |
Machine size (mm) |
1300(L)x1000(W)x1400(H) |
Machine weight (kg) |
600 |
