Description

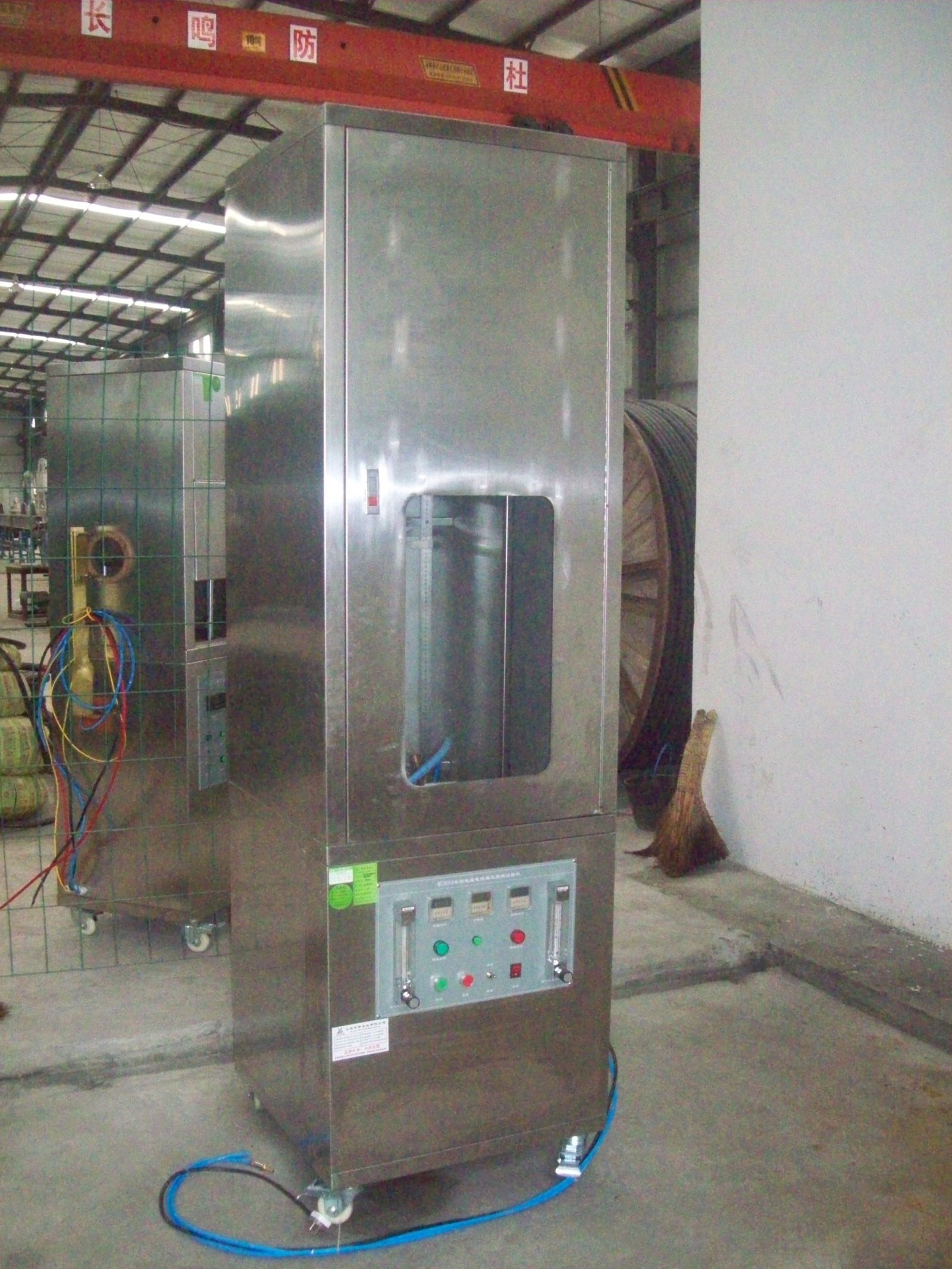

KP8026B single wire or cable vertical burning test machine (hood)
First, the scope:
Applicable under specified fire conditions, a single wire or fiber optic cable vertical flame test cases slow extension
Second, the standard;
In line with GB / T12666.1-2008, GB / T18380.11-2008, GB / T18380.12-2008, GB / T18380.13-2008, IEC60332-1-1: 2004, IEC60332-1-2: 2004, IEC60332 -1-3: 2004
In line with GB / T18380.21-2008, GB / T18380.22-2008, IEC60332-2-1: 2004, IEC60332-2-2: 2004
First, the main parameters:
1, the metal cover: high 1200mm, width 300mm, depth 450mm, front open top and closed at the bottom.
2, burner:
2.1, GB / T18380.11-2008, GB / T18380.12-2008, GB / T18380.13-2008, IEC60332-1-1: 2004, IEC60332-1-2: 2004, IEC60332-1-3: 2004 adopted the nominal power of 1kw blowtorch. In line with GB / T5169-14 standards.
2.2, GB / T18380.21-2008, GB / T18380.22-2008, IEC60332-2-1: 2004, IEC60332-2-2: 2004 using a propane torch (diffusion flame).
3, set the burn time reaches the preset time, the machine will automatically stop firing.
4, the high-voltage ignition automatic fire.
5, fuel: methane gas (customer supplied)
6, air flow meter: 10L / min, gas flow meter 650mL / min each a
7, a temperature measuring device
